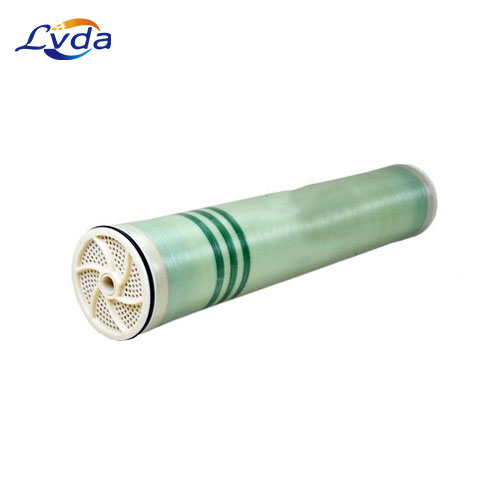

Model Number: SWC5-LD-4040

Permeate Flow : 1,750 gpd (6.62 m3 /d)

Salt Rejection : 99.7% (99.5% minimum)

Membrane Polymer : Composite Polyamide

Membrane Active Area : 80 ft2 (7.43 m2 )

Feed Spacer : 34 mil (0.86 mm)

Get Quotation

Product Details

SWC5-LD-4040 membranes have improved productivity and salt rejection, while reducing their environmental impact. These membranes come in a variety of innovative formulations depending on the level of seawater salinity required.

Application Data
Maximum Applied Pressure: 1200 psig (8.27 MPa)
Maximum Chlorine Concentration: < 0.1 ppm
Maximum Operating Temperature: 113°F (45 °C)
pH Range, Continuous (Cleaning): 2-11 (1-13)
Maximum Feedwater Turbidity: 1.0 NTU
Maximum Feedwater SDI (15 mins): 5.0
Maximum Feed Flow: 16 gpm (3.6 m3/h)
Minimum Brine Flow 3 gpm (0.7 m3/h)
Maximum Pressure Drop for Each Element: 15 psi (0.10 MPa)
