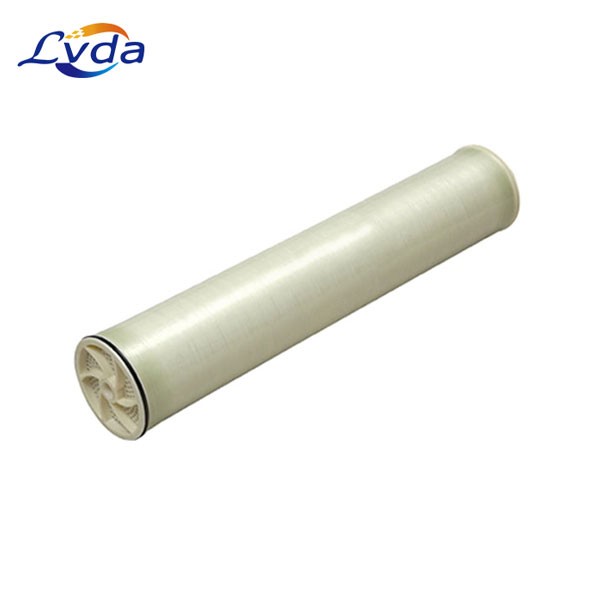

SWC5-LD Seawater Membrane
SWC5-LD Seawater Membrane

SWC5-LD Seawater Membrane

Other water filters

Model Number: SWC5-LD

Permeate Flow : 9,000 gpd (34.1 m3 /d)

Salt Rejection : 99.8% (99.7% minimum)

Membrane Polymer : Composite Polyamide

Membrane Active Area : 400 ft2 (37.2 m2 )

Feed Spacer : 34 mil (0.86 mm)

Get Quotation

Product Details

SWC5-LD RO membranes are innovatively designed for varying degrees of seawater salinity and offer the highest level of productivity. SWC membranes are premium grade, feature high salt rejection, low fouling, low energy consumption and exceptional performance making them the perfect choice!

Application Data

Maximum Applied Pressure: 1200 psig (8.27 MPa)

Maximum Chlorine Concentration: < 0.1 ppm

Maximum Operating Temperature: 113 °F (45°C)

pH Range, Continuous (Cleaning): 2-11 (1-13)

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 85 gpm (19.3 m3/h)

Minimum Brine Flow: 12 gpm (2.7 m3/h)

Maximum Pressure Drop for Each Element: 15 psi (0.10 MPa)
