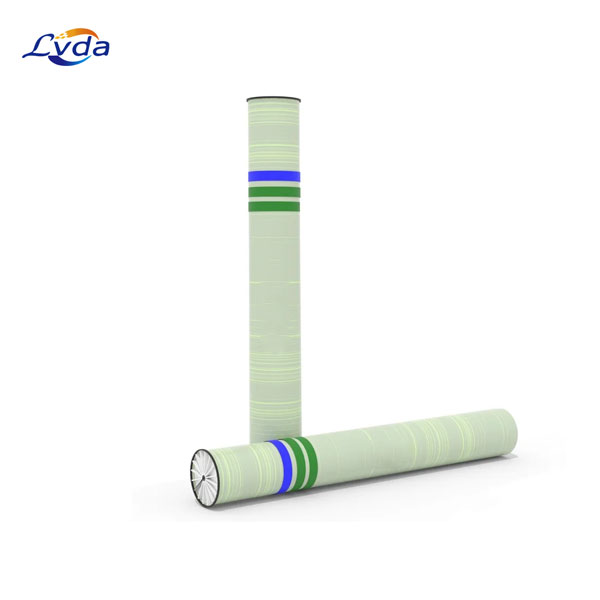

SWC5-4040 Seawater Membrane

Product Details

SWC5-4040 are offered to minimize colloidal fouling when used with conventional pre-treatment equipment. They offer consistently low feed pressures and highest duration between two successive cleanings.

Application Data

Maximum Applied Pressure: 1200 psig (8.27 MPa)

Maximum Chlorine Concentration: < 0.1 PPM

Maximum Operating Temperature: 113 °F (45 °C)

pH Range, Continuous (Cleaning): 2-11 (1-13)

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 16 GPM (3.6 m3/h)

Minimum Recovery for any Element: 10 %

Maximum Pressure Drop for Each Element: 10 psi
