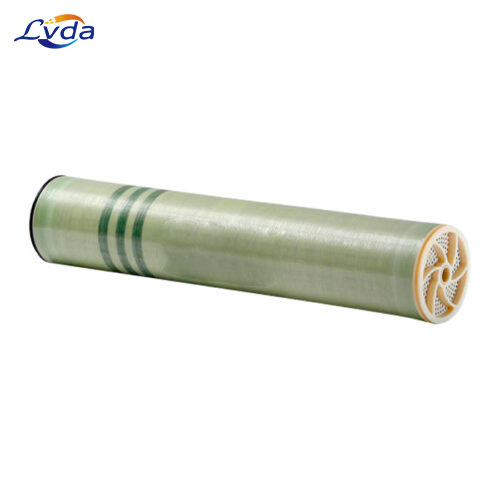

SWC4-MAX RO Membrane Element
SWC4-MAX RO Membrane Element

SWC4-MAX RO Membrane Element

Other water filters

Model Number: SWC4-MAX

Permeate Flow : 7,200 gpd (27.3 m3 /d)

Salt Rejection : 99.8% (99.7% minimum)

Configuration : Spiral Wound

Membrane Polymer : Composite Polyamide

Membrane Active Area : 440 ft2 (40.9 m2 )

Get Quotation

Product Details

SWC4-MAX seawater desalination membranes are high productivity elements offering the highest levels of salt rejection and a consistently pure end produ.

Application Data

Maximum Applied Pressure: 1200 psig (8.27 MPa)

Maximum Chlorine Concentration: < 0.1 ppm

Maximum Operating Temperature: 113 °F (45 °C)

pH Range, Continuous (Cleaning): 2-11 (1-13)

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 75 gpm (17.0 m3/h)

Minimum Brine Flow: 12 gpm (2.7.0 m3/h)

Maximum Pressure Drop for Each Element: 15 psi (0.10 MPa)
