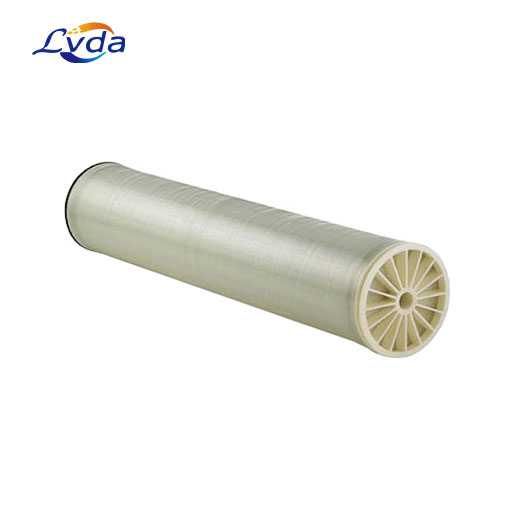

Model Number: SWC4B-LD

Permeate Flow : 6,500 gpd (24.6 m3 /d)

Salt Rejection : 99.8 % (99.7 % minimum)

Boron Rejection (Typical) : 95.0%

Membrane Active Area : 400 ft2 (37.1m2 )

Feed Spacer : 34 mil (0.864 mm) with biostatic agent

Get Quotation

Product Details

SWC4B-LD membranes feature LD Technology - high performance RO technology that helps reduce fouling from colloidal particles and biological growth.

Application Data

Maximum Applied Pressure: 1200 psig (8.27 MPa)

Maximum Chlorine Concentration: < 0.1 PPM

Maximum Operating Temperature: 113 °F (45 °C)

pH Range, Continuous (Cleaning): 2-11 (1-13)

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 75 GPM (17.0 m3/h)

Minimum Ratio of Concentrate to Permeate Flow for any Element: 5:1

Maximum Pressure Drop for Each Element: 15 psi
