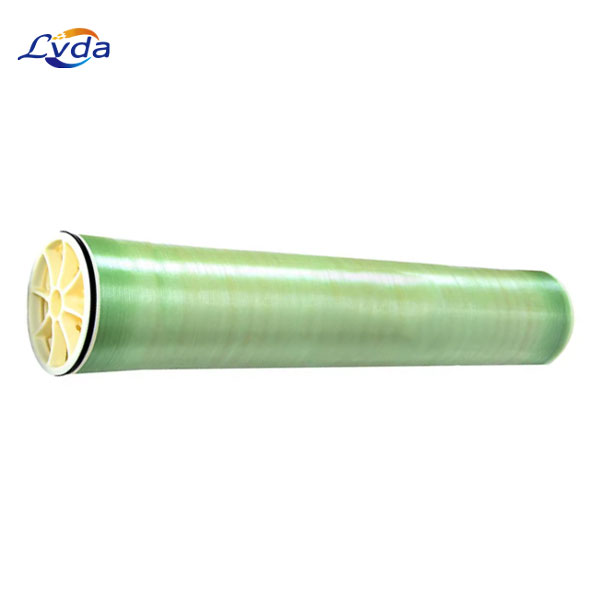

Model Number: SWC4-LD

Permeate Flow : 6,500 gpd (24.6 m3 /d)

Salt Rejection : 99.8% (99.7% minimum)

Membrane Polymer : Composite Polyamide

embrane Active Area : 400 ft2 (37.1 m2 )

Feed Spacer : 34 mil (0.86 mm)

Get Quotation

Product Details

SWC4-LD Membrane Formulations are designed to accommodate varying levels of seawater salinities worldwide with reliable field-proven performance. The SWC4-LD offers the same performance as the SWC4 with additional low fouling characteristics and superior salt and boron rejection with low operating pressures.

Application Data

Maximum Applied Pressure: 1200 psig (8.27 MPa)

Maximum Chlorine Concentration: < 0.1 ppm

Maximum Operating Temperature: 113 °F (45  °C)

pH Range, Continuous (Cleaning): 2-11 (1-13)

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 85 gpm (17.0 m3/h)

Minimum Brine Flow: 12 gpm (2.7.0 m3/h)

Maximum Pressure Drop for Each Element: 15 psi (0.10 MPa)
