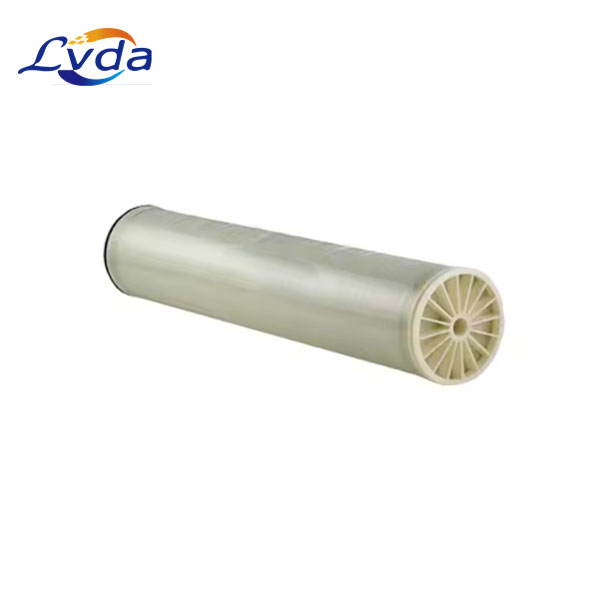

SWC-2514 Seawater RO Filter

Product Details

SWC-2514 Membrane uses Reverse Osmosis water filtration technology to take out 99.40% of contaminants found in the feedwater, which makes it best suited for seawater desalination and high TDS industrial waste water treatment applications, including conventional and hybrid designs.

Application Data

Maximum Applied Pressure: 1,000 psig (6.9 MPa)

Maximum Chlorine Concentration: < 0.1 PPM

Maximum Operating Temperature: 113° F (45°C)

pH Range; Continuous (Cleaning): 2-11 (1-13)

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 4.0

Maximum Feed Flow: 6 GPM (23 l/m)

Minimum Ratio of Concentrate to Permeate Flow for any element: 5:1

Maximum Pressure Drop for Each Element: 10 psi
