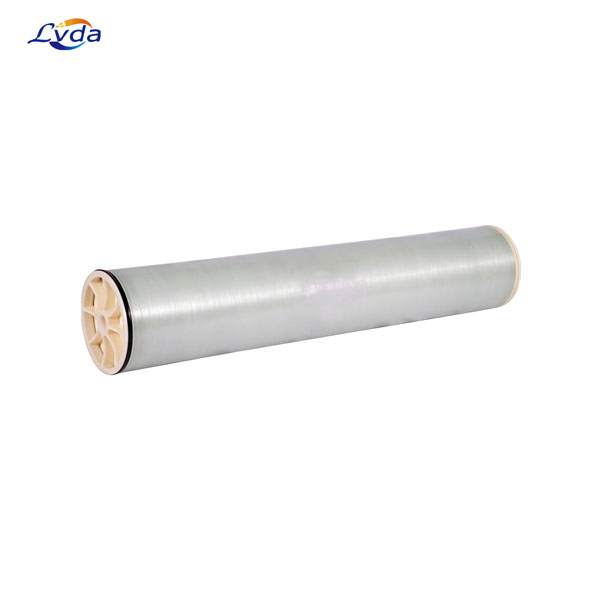

Model Number: NANO-SW

Permeate Flow : 11,000 gpd (41.6 m3 /d)

MgSO4 Rejection : 99.8% (99.6% minimum)

Test Conditions : 2000 ppm MgSO4 110 psig (0.76 MPa) Applied Pressure 77 F (25 C) Operating Temperature 15% Permeate Recovery 6.5 - 7.0 pH Range

Nominal Permeate Flow : 7,150 gpd (27.0 m3 /d)

Nominal Chloride Rejection : 25%

Nominal Sulfate Rejection : 99.8%

Get Quotation

Product Details

NANO-SW is designed for Seawater / High Salinity Water applications that require a psi of 110. This Membrane uses Nano Filtration water filtration technology to take out 99.80% of contaminants found in the feedwater, which makes it best suited for oil and gas industry and seawater injection.

Application Data

Maximum Applied Pressure: 600 psig (4.14 MPa)

Maximum Chlorine Concentration: < 0.1 ppm

Maximum Operating Temperature: 113 °F (45 °C)

pH Range, Continuous (Cleaning): 3-9 (1-11.5)

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 85 gpm (19.3 m3/h)

Minimum Brine Flow: 12 gpm (2.7 m3/h)

Maximum Pressure Drop for Each Element: 15 psi (0.10 MPa)
