NANO-BW Nanofiltracion
NANO-BW Nanofiltracion

NANO-BW Nanofiltracion

Other water filters

Model Number: NANO-BW

Permeate Flow (Nominal) : 11,000 gpd (41.6 m3 /d)

MgSO4 Rejection (Nominal) : 99.7% (99.5% minimum)

Membrane Polymer : Composite Polyamide

Nominal Membrane Area : 400 ft2 (37 m2 )

Feed/Brine Spacer Thickness : 34 mil (0.87 mm)

Get Quotation

Product Details

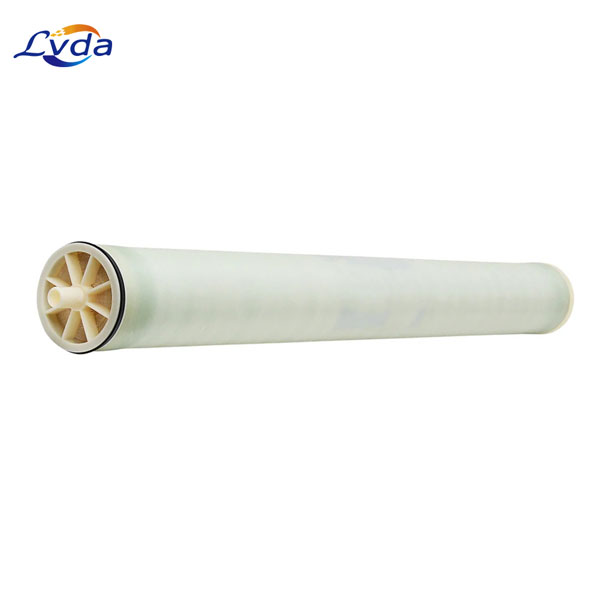

NANO-BW are high performance nanofiltration membranes ideal for treatment of low salinity surface or ground waters containing high molecular weight organics or pesticides.

Application Data

Maximum Applied Pressure: 600 psig (4.14 MPa)

Maximum Chlorine Concentration: < 0.1 PPM

Maximum Operating Temperature: 113 °F (45 °C)

pH Range, Operation (Cleaning): 3.0 - 9.0 (1.0 – 11.5)

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 75 GPM (17.0 m3/h)

Minimum Ratio of Concentrate to Permeate Flow for any Element: 5:1

Maximum Pressure Drop for Each Element: 10 psi
