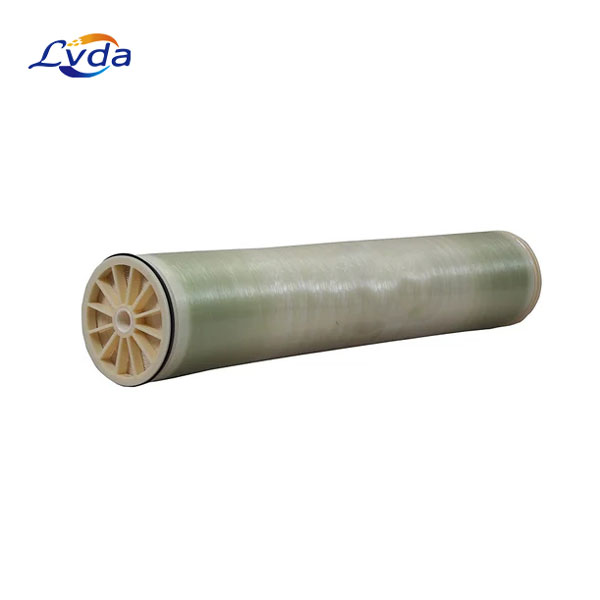

Model Number: ESNA-LF2-LD-4040

Permeate Flow : 2,000 gpd (7.6 m 3 /d)

CaCl2 Rejection : 90%

CaCl2 Rejection (minimum/maximum) : 85% / 95%

Membrane Active Area : 80 ft2 (7.43 m 2 )

Feed Spacer : 34 mil (0.864 mm) with biostatic agent

Get Quotation

Product Details

ESNA-LF2-LD-4040 Membrane uses Nano Filtration water filtration technology to take out 90.00% of contaminants found in the feedwater, which makes it best suited for ideal for softening applications and removal of pesticides and pathogens and municipal potable water systems.

Application Data

Maximum Applied Pressure: 600 psig (4.14 MPa)

Maximum Chlorine Concentration: < 0.1 PPM

Maximum Operating Temperature: 113 °F (45 °C)

pH Range, Continuous (Cleaning): 2-10 (2-12)

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 16 GPM (3.6 m3/h)

Minimum Ratio of Concentrate to Permeate Flow for any Element: 5:1

Maximum Pressure Drop for Each Element: 10 psi
