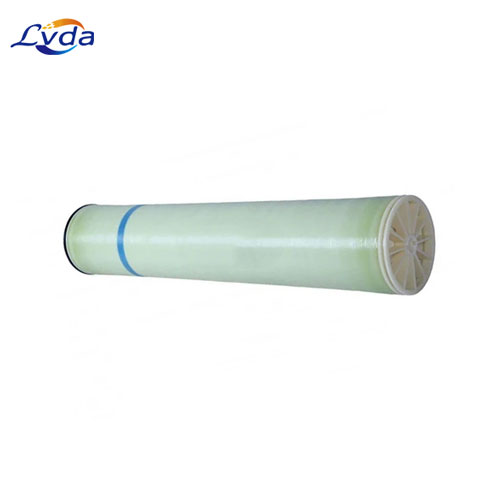

Model Number: ESNA1-LF-LD

Permeate Flow : 8,400 gpd (31.8 m 3 /d)

CaCl2 Rejection : 92%

CaCl2 Rejection (minimum/maximum) : 87%/96%

Membrane Active Area : 400 ft2 (37.1m2 )

Feed Spacer : 34 mil (0.864 mm) with biostatic agent

Get Quotation

Product Details

ESNA1-LF-LD elements provide 50% - 91% salt rejection with ultra-low operating pressures (below 100psi), and are ideal For softening applications and the removal of pesticides, bacteria, or viruses.

Application Data

Maximum Applied Pressure: 600 psig (4.14 MPa)

 Maximum Chlorine Concentration: < 0.1 PPM

 Maximum Operating Temperature: 113 °F (45 °C)

 pH Range, Continuous (Cleaning): 2-10 (1-12)

 Maximum Feedwater Turbidity: 1.0 NTU

 Maximum Feedwater SDI (15 mins): 5.0

 Maximum Feed Flow: 75 GPM (17.0 m3/h)

 Minimum Ratio of Concentrate to Permeate Flow for any Element: 5:1

 Maximum Pressure Drop for Each Element: 10 psi
