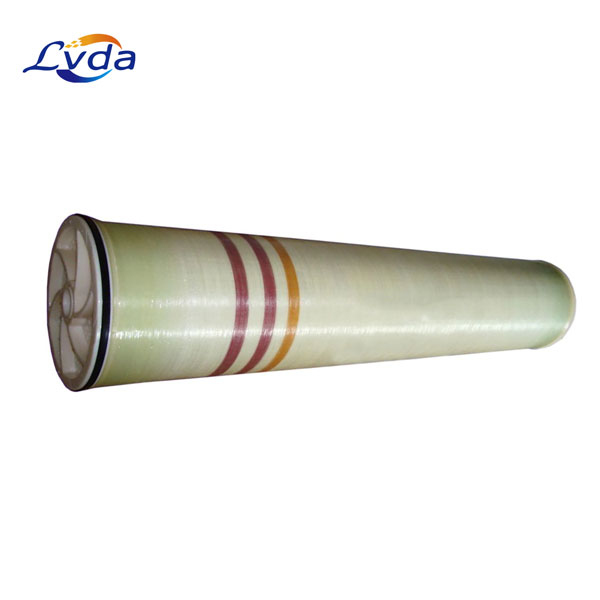

Model Number: ESNA1-LF2-LD-8040 (replaces ESNA1-8040)

Permeate Flow : 10,500 gpd (39.7 m3 /d)

CaCl2 Rejection : 86%

CaCl2 Rejection (minimum/maximum) : 83%/90%

Membrane Active Area : 400 ft2 (37.1m2 )

Feed Spacer : 34 mil (0.864mm)

Get Quotation

Product Details

ESNA1-LF2-LD-8040 combine benefits of high recovery and low footprint requirement due to its optimized membrane area and novel cleaning regimes.

Application Data
Maximum Applied Pressure: 600 psig (4.16 MPa)
Maximum Chlorine Concentration: < 0.1 PPM
Maximum Operating Temperature: 113 °F (45 °C)
pH Range, Continuous (Cleaning): 2-10 (1-12)
Maximum Feedwater Turbidity: 1.0 NTU
Maximum Feedwater SDI (15 mins): 4.0
Maximum Feed Flow: 75 GPM (17.0 m3/h)
Minimum Ratio of Concentrate to Permeate Flow for any Element: 5:1
Maximum Pressure Drop for Each Element: 10 psi
