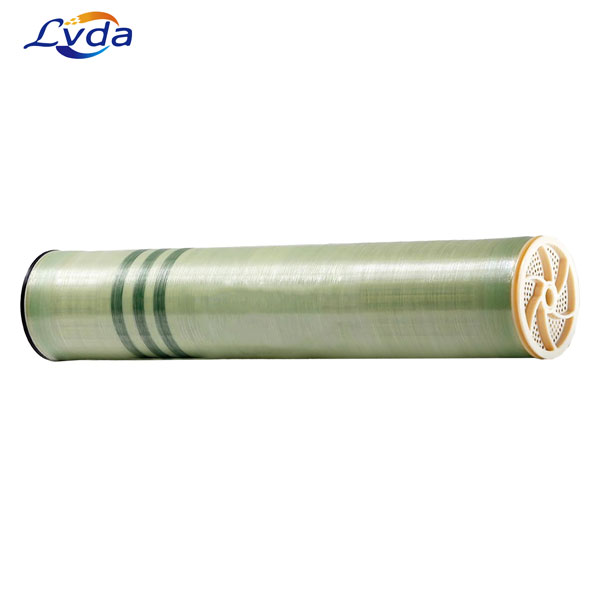

501-8040 Reverse Osmosis Membrane

Product Details

HYDRApro 501-8040 series is a unique set of spiral wound membranes customized specifically for industrial process applications. These membranes are based on existing high performance membrane products which have been specially designed to treat a variety of challenging industrial feed streams including high fouling, high temperature, or chemically aggressive feeds.

Application Data

Maximum Applied Pressure:600 psig (4.1 MPa) at 65 °C

Maximum Chlorine Concentration:< 0.1 ppm

Maximum Operating Temperature:Pressure dependent (see Chart 1 for detail)

pH Range, Continuous (Cleaning):2 –11 (1 –13)

Maximum Feedwater Turbidity:1.0 NTU

Maximum Feedwater SDI (15 mins)：5.0

Maximum Feed Flow for 8040:75 gpm (17 m3/h)

Maximum Pressure Drop for Each Element:15 psi
