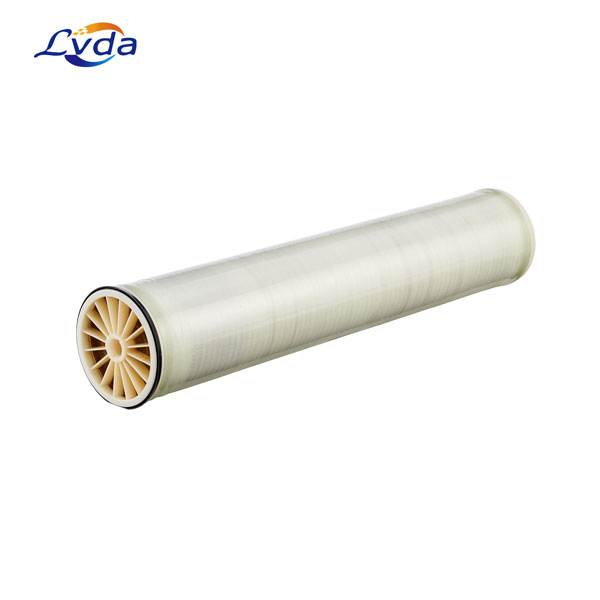

LFC3-LD-4040 Low Fouling RO Elements
LFC3-LD-4040 Low Fouling RO Elements

LFC3-LD-4040 Low Fouling RO Elements

Other water filters

Model Number: LFC3-LD-4040

Permeate Flow : 2,100 gpd (7.95 m3 /d)

Salt Rejection : 99.7% (99.5% minimum)

Membrane Polymer : Composite Polyamide

Membrane Active Area : 80 ft2 (7.43 m2 )

Feed Spacer : 34 mil (0.864 mm) with biostatic agent

Get Quotation

Product Details

LFC3-LD-4040 elements combine neutral surface charge and hydrophilicity, providing a significant reduction in fouling rates and increasing membrane efficiency by restoring nominal performance after cleaning.

Application Data

Maximum Applied Pressure: 600 psig (4.14 MPa)

Maximum Chlorine Concentration: < 0.1 PPM

Maximum Operating Temperature: 113 °F (45 °C)

pH Range, Continuous (Cleaning): 2-10 (1-12)*

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 16 GPM (3.6 m3/h)

Minimum Ratio of Concentrate to Permeate Flow for any Element: 5:1

Maximum Pressure Drop for Each Element: 15 psi
