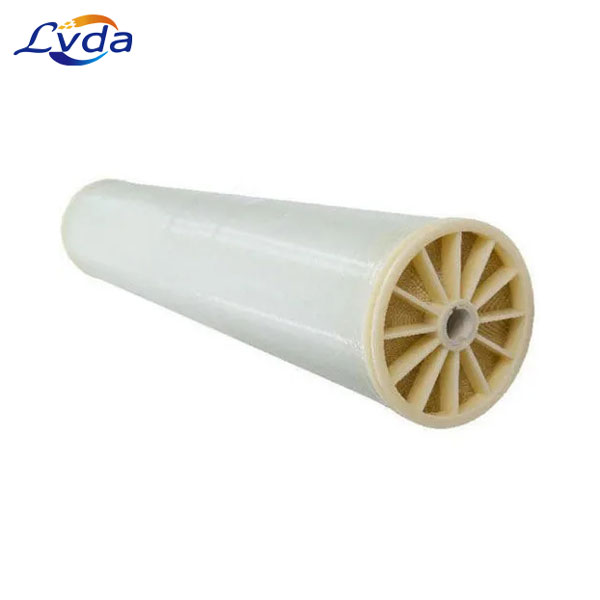

LFC3-LD Low Fouling RO Elements
LFC3-LD Low Fouling RO Elements

LFC3-LD Low Fouling RO Elements

Other water filters

Model Number: LFC3-LD LFC1-4040 LFC2-4040 LFC1-8040 LFC2-8040

Permeate Flow : 11,000 gpd (41.6 m3 /d)

Salt Rejection : 99.7% (99.5% minimum)

Configuration : Low Fouling Spiral Wound

Membrane Active Area : 400 ft2 (37.2 m2 )

Feed Spacer : 34 mil (0.86 mm)

Get Quotation

Product Details

LFC3-LD elements combine neutral surface charge and hydrophilicity, providing a significant reduction in fouling rates and increasing membrane efficiency by restoring nominal performance after cleaning.

pecifications

Maximum Applied Pressure: 600 psig (4.14 MPa)

Maximum Chlorine Concentration: < 0.1 ppm

Maximum Operating Temperature: 113 °F (45 °C)

pH Range, Continuous (Cleaning): 2-10 (1-12)

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 85 gpm (19.3 m3/h)

Minimum Brine Flow: 12 gpm (2.7 m3/h)

Maximum Pressure Drop for Each Element: 15 psi (0.10 MPa)
