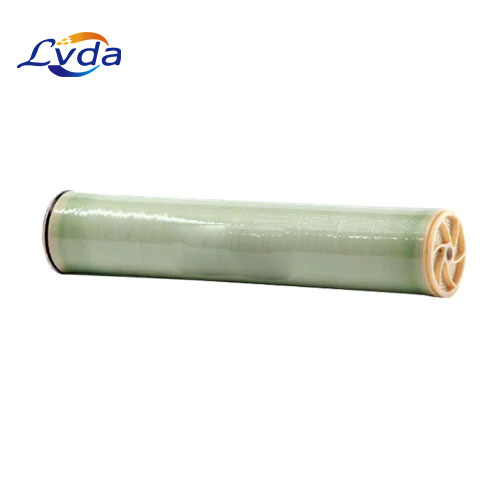

CPA5 MAX High rejection RO membranes
CPA5 MAX High rejection RO membranes

CPA5 MAX High rejection RO membranes

Other water filters

Model Number: CPA5 MAX

Permeate Flow : 12,000 gpd (45.5 m3 /d)

Salt Rejection : 99.7 % (99.6% minimum)

Configuration : Spiral Wound

Membrane Polymer : Composite Polyamide

Nominal Membrane Area : 440 ft2 (40.9 m2 )

Get Quotation

Product Details

CPA5 MAX combines benefits of high recovery and low footprint requirement due to its optimized membrane area and novel cleaning regimes.

Application Data

Maximum Applied Pressure: 600 psig (4.14 MPa)

Maximum Chlorine Concentration: < 0.1 PPM

Maximum Operating Temperature: 113 °F (45 °C)

pH Range, Continuous (Cleaning): 2-11 (1-13)

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 75 GPM (17.0 m3/h)

Minimum Ratio of Concentrate to Permeate Flow for any Element: 5:1

Maximum Pressure Drop for Each Element: 15 psi
