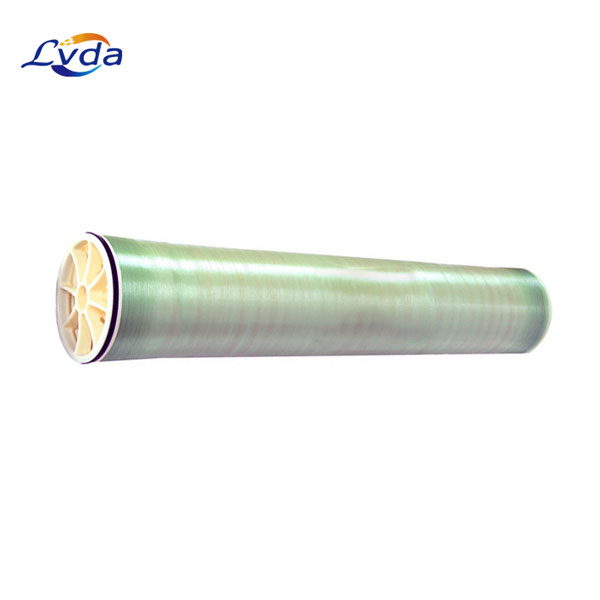

CPA5-LD-8040 High rejection RO membranes

Product Details

CPA5-LD-8040 Reverse Osmosis water filtration technology Membrane is designed for Brackish Water applications that require a psi of 225. This Membrane uses Reverse Osmosis water filtration technology to take out 99.70% of contaminants found in the feedwater.

Application Data

Maximum Applied Pressure:600 psig (4.16 MPa)

Maximum Chlorine Concentration:< 0.1 PPM

Maximum Operating Temperature:113 ℉F(45 °C)

pH Range, Continuous (Cleaning):2-11(1-13)

Maximum Feedwater Turbidity:1.0 NTU

Maximum Feedwater SDl (15 mins):5.0

Maximum Feed Flow:75 GPM (17.0 m'/h)

Minimum Ratio of Concentrate to Permeate Flow for any Element:5:1

Maximum Pressure Drop for Each Element:10 psi
