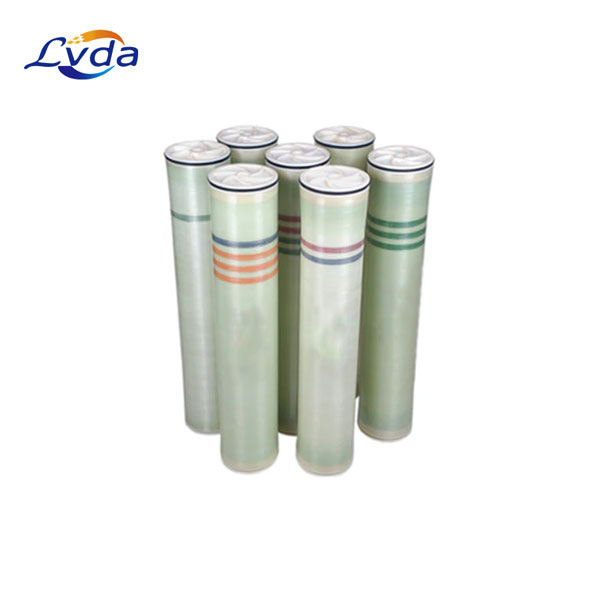

CPA5-LD-4040 High rejection RO membranes
CPA5-LD-4040 High rejection RO membranes

CPA5-LD-4040 High rejection RO membranes

Other water filters

Model Number: CPA5-LD-4040

Permeate Flow : 2,100 gpd (7.95 m 3 /d)

Salt Rejection : 99.7% (99.5% minimum)

Configuration : Low Fouling Spiral Wound

Membrane Active Area : 80 ft2 (7.43 m 2 )

Feed Spacer : 34 mil (0.864 mm) with biostatic agent

Get Quotation

Product Details

CPA5-LD-4040 membranes set the standard for high-performance RO membrane elements. is biofouling and colloidal fouling resistant and features enhanced cleanability.

Application Data

Maximum Applied Pressure: 600 psig (4.14 MPa)

Maximum Chlorine Concentration: < 0.1 PPM

Maximum Operating Temperature: 113 °F (45 °C)

pH Range, Continuous (Cleaning): 2-11 (1-13)

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 16 GPM (3.6 m3/h)

Minimum Ratio of Concentrate to Permeate Flow for any Element: 5:1

Maximum Pressure Drop for Each Element: 15 psi
