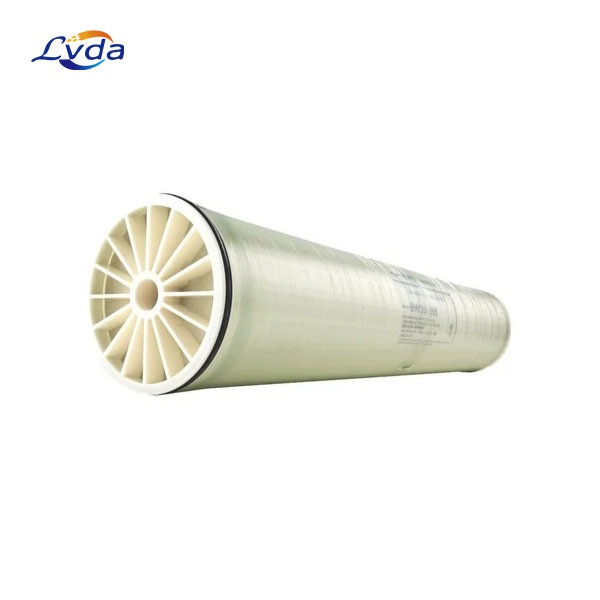

CPA5-LD High rejection RO membranes
CPA5-LD High rejection RO membranes

CPA5-LD High rejection RO membranes

Other water filters

Model Number: CPA5-LD

Permeate Flow : 11,000 gpd (41.6 m3 /d)

Salt Rejection : 99.7% (99.6% minimum)

Membrane Polymer : Composite Polyamide

Membrane Active Area : 400 ft2 (37.1m2 )

Feed Spacer : 34 mil (0.864 mm) with biostatic agent

Get Quotation

Product Details

CPA5-LD a high performance RO technology that helps reduce fouling from colloidal particles and biological growth. This innovative feed spacer design prevents trapping of small colloidal particles and improves the effectiveness of cleanings.

Application Data

Maximum Applied Pressure: 600 psig (4.14 MPa)

Maximum Chlorine Concentration: < 0.1 PPM

Maximum Operating Temperature: 113 °F (45 °C)

pH Range, Continuous (Cleaning): 2-11 (1-13)*

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 75 GPM (17.0 m3/h)

Minimum Ratio of Concentrate to Permeate Flow for any Element: 5:1

Maximum Pressure Drop for Each Element: 15 psi
