Model Number: CPA4-8040 (replaced by CPA3)

Permeate Flow : 11,000 gpd (41.6 m3 /d)

Salt Rejection : 99.7% (99.6% minimum)

Membrane Polymer : Composite Polyamide

Membrane Active Area : 400 ft2 (37.1 m2 )

Feed Spacer : 31 mil (0.787mm)

Get Quotation

Product Details

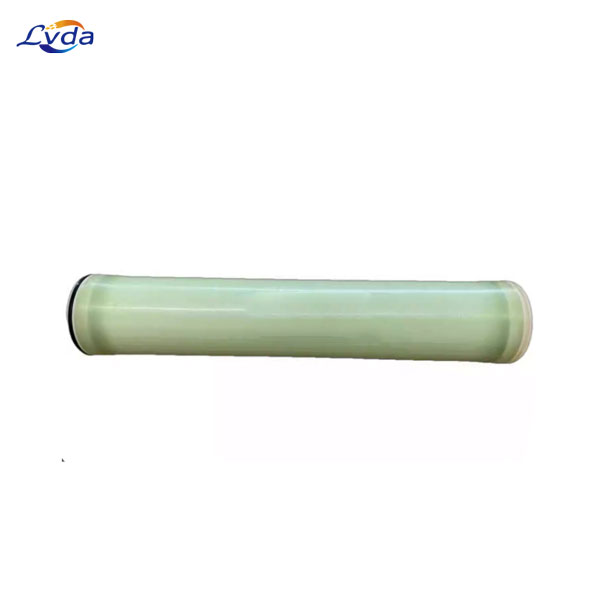

CPA3 RO membrane filter Composite Polyamide elements set the standard for RO membrane elements-over 11000 gallons per day of pure water are produced.

Application Data

Maximum Applied Pressure: 600 psig (4.14 MPa)

Maximum Chlorine Concentration: < 0.1 PPM

Maximum Operating Temperature: 113 °F (45 °C)

pH Range, Continuous (Cleaning): 2-10.8 (1-12.5)*

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 75 GPM (17.0 m3/h)

Minimum Ratio of Concentrate to Permeate Flow for any Element: 5:1

Maximum Pressure Drop for Each Element: 15 psi
