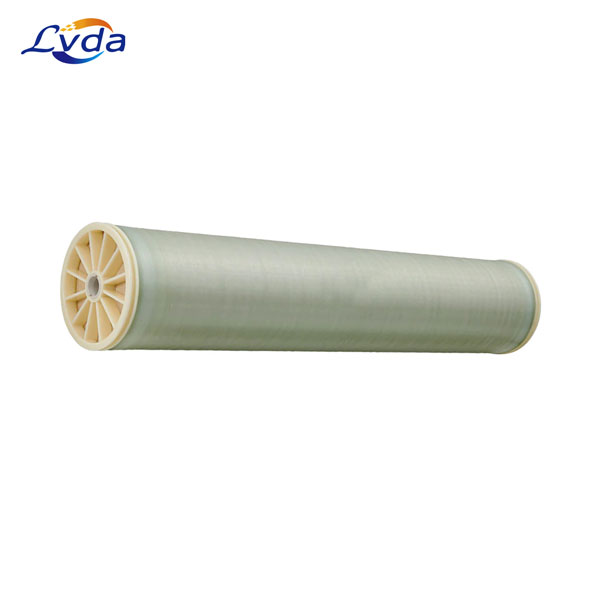

CPA3 LD-8040 High rejection RO membranes
CPA3 LD-8040 High rejection RO membranes

CPA3 LD-8040 High rejection RO membranes

Other water filters

Model Number: CPA3 LD-8040

Permeate Flow : 11,000 gpd (41.6 m²/d)

Salt Rejection : 99.7% (99.6% minimum)

Configuration : Spiral Wound

Membrane Polymer : Composite Polyamide

Membrane Active Area : 400 ft (37.1 m)

Feed Spacer : 31 mil (0.787mm)

Get Quotation

Product Details

CPA3 LD-8040 RO membranes are designed to filter brackish water with very high rejections rates in various applications. The RO elements in these membranes are of the highest standard, can be used in primary or pretreatment, and are suited for global municipalities and industries.

Application Data

Maximum Applied Pressure:600 psig (4.16 MPa)

Maximum Chlorine Concentration:< 0.1 PPM

Maximum Operating Temperature:113 ℉F(45 ℃)

pH Range, Continuous (Cleaning):2-10.8(1-12.5)

Maximum Feedwater Turbidity:1.0 NTU

Maximum Feedwater SDl(15 mins):5.0

Maximum Feed Flow:75 GPM (17.0 m³/h)

Minimum Ratio of Concentrate to Permeate Flow for any Element:5:1

Maximum Pressure Drop for Each Element:10 psi
