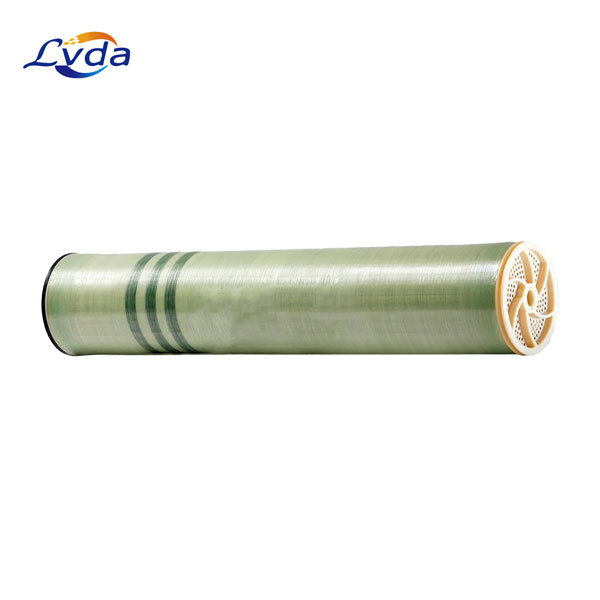

Model Number: CPA3-8040

Permeate Flow : 11,000 gpd (41.6 m²/d)

Salt Rejection : 99.7% (99.6% minimum)

Configuration : Spiral Wound

Membrane Polymer : Composite Polyamide

Membrane Active Area : 400 ft(37.1 m )

Feed Spacer : 31 mil (0.787mm)

Get Quotation

Product Details

CPA3-8040 membranes are used to treat a wide range of highly variable waters as either primary treatment or as pretreatment to reverse osmosis (RO) and nanofiltration (NF).

Application Data

Maximum Applied Pressure:600 psig (4.16 MPa)

Maximum Chlorine Concentration:<0.1 PPM

Maximum Operating Temperature.113 ℉(45°C)

pH Range, Continuous (Cleaning):2-10.8 (1-12.5)

Maximum Feedwater Turbidity:1.0 NTU

Maximum Feedwater SDl(15 mins):5.0

Maximum Feed Flow:75 GPM (17.0 m²/h)

Minimum Ratio of Concentrate to Permeate Flow for any Element:5:1

Maximum Pressure Drop for Each Element: 10 psi
