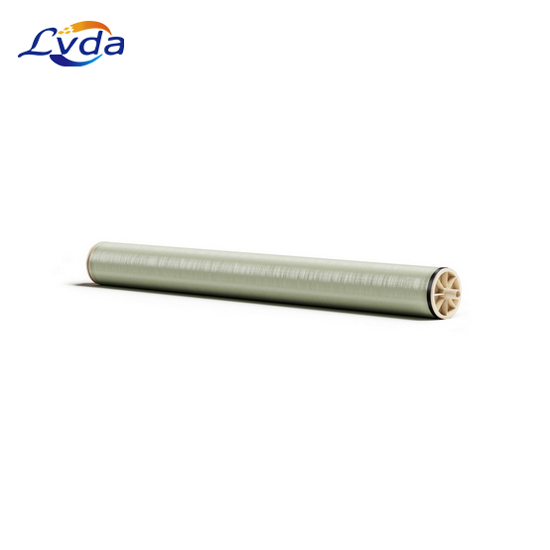

CPA-4040E High rejection RO membranes

Product Details

CPA-4040E Reverse Osmosis water filtration technology Membrane is designed for Brackish Water applications that require a psi of 225. This Membrane uses Reverse Osmosis water filtration technology to take out 99.50% of contaminants found in the feedwater, which makes it best suited for critical high purity application, power generation, pharmaceutical electronics, and semiconductor industry.

Application Data

Maximum Applied Pressure: 600 psig (4.14 MPa)

Maximum Chlorine Concentration: < 0.1 PPM

Maximum Operating Temperature: 113 °F (45 °C)

pH Range, Continuous (Cleaning): 2-10 (1-12)*

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 16 GPM (3.6 m3/h)

Minimum Ratio of Concentrate to Permeate Flow for any Element: 5:1

Maximum Pressure Drop for Each Element: 15 psi

Dry Element Temperature Storage -40 °C to 40 °C (-40°F to 104°F)

Wet Element Temperature Storage 1 °C to 35 °C (33°F to 95°F)
