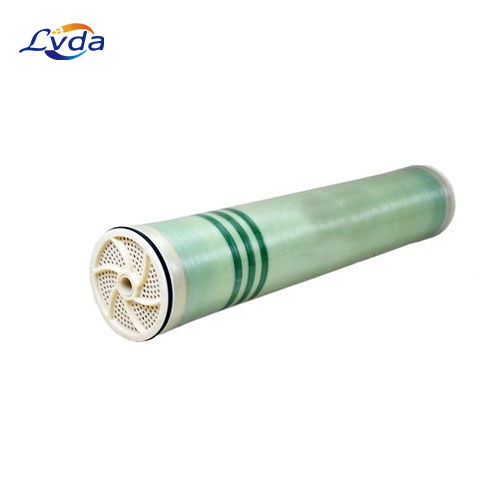

ESPA B-MAX Energy Saving RO elements

Product Details

ESPA B-MAX reverse osmosis membrane elements for a wide range of water treatment applications, including: the treatment of well, surface or wastewater with high salt rejection requirements, high purity industrial applications and seawater desalination plants requiring high boron rejection.

Product Use and Restrictions

Maximum Applied Pressure: 600 psig (4.14 MPa)

Maximum Chlorine Concentration: < 0.1 ppm

Maximum Operating Temperature: 113 °F (45 °C)

pH Range, Continuous (Cleaning): 2-11 (1-12.5)

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 75 gpm (17.0 m3/h)

Minimum Brine Flow: 12 gpm (2.7 m3/h)

Maximum Pressure Drop for Each Element: 15 psi (0.10 MPa)
