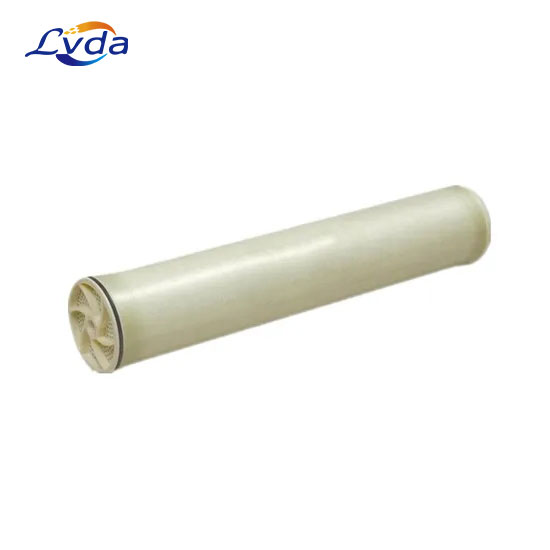

ESPA4-8040 Energy Saving RO elements

Product Details

ESPA4-8040 membranes are used in the treatment of drinking water, industrial process waters, municipal and industrial waste water recovery and reuse because of this exception performance capability. These membranes also serve as part of polishing units in seawater desalination plants when boron rejection is critical.

Application Data

Maximum Applied Pressure: 600 psig (4.16 MPa)

Maximum Chlorine Concentration: < 0.1 PPM

Maximum Operating Temperature: 113 °F (45 °C)

pH Range, Continuous (Cleaning): 2-10 (1-12)*

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 75 GPM (17.0 m3/h)

Minimum Ratio of Concentrate to Permeate Flow for any Element: 5:1

Maximum Pressure Drop for Each Element: 10 psi
