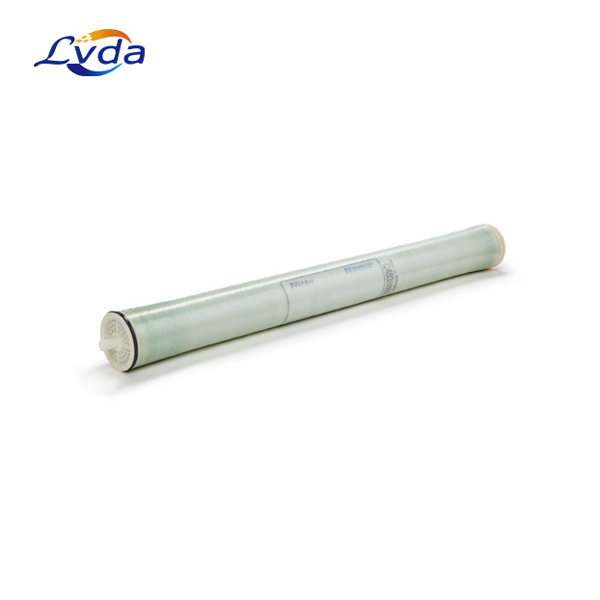

ESPA4-4040 Energy Saving RO elements

Product Details

ESPA4-4040 Membrane uses Reverse Osmosis water filtration technology to take out 99.20% of contaminants found in the feedwater, which makes it best suited for drinking water production from well and surface waters in the water treatment industry, industrial process waters, and municipal and industrial waste water recovery and reuse.

Application Data

Maximum Applied Pressure: 600 psig (4.16 MPa)

Maximum Chlorine Concentration: < 0.1 PPM

Maximum Operating Temperature: 113 °F (45 °C)

pH Range, Continuous (Cleaning): 2-10 (1-12)*

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 16 GPM (3.6 m3/h)

Minimum Ratio of Concentrate to Permeate Flow for any Element: 5:1

Maximum Pressure Drop for Each Element: 10 psi
