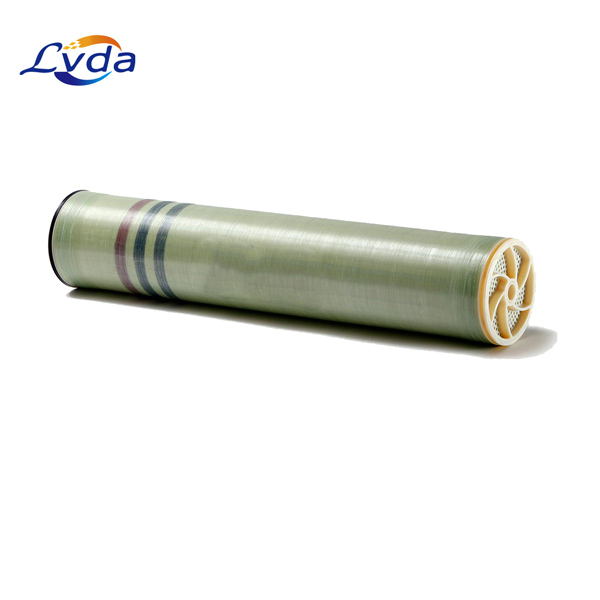

Model Number: ESPA-MAX-8040

Permeate Flow : 12,000 gpd (45.4 m3 /d)

Salt Rejection : 99.6 % (99.5 % minimum)

Configuration : Spiral Wound

Membrane Polymer : Composite Polyamide

Membrane Active Area : 440 ft2 (40.8m2 )

Get Quotation

Product Details

ESPA-MAX-8040 Reverse Osmosis water filtration technology Membrane is designed for Brackish Water applications that require a psi of 150. This Membrane uses Reverse Osmosis water filtration technology to take out 99.60% of contaminants found in the feedwater, which makes it best suited for treatment of drinking water, industrial process waters, and municipal and industrial waste water recovery and reuse.

Application Data

Maximum Applied Pressure: 600 psig (4.16 MPa)

Maximum Chlorine Concentration: < 0.1 PPM

Maximum Operating Temperature: 113 F (45 C)

pH Range, Continuous (Cleaning): 2-10.6 (1-12)*

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 75 GPM (17.0 m3/h)

Minimum Ratio of Concentrate to Permeate Flow for any Element: 5:1

Maximum Pressure Drop for Each Element: 10 psi
