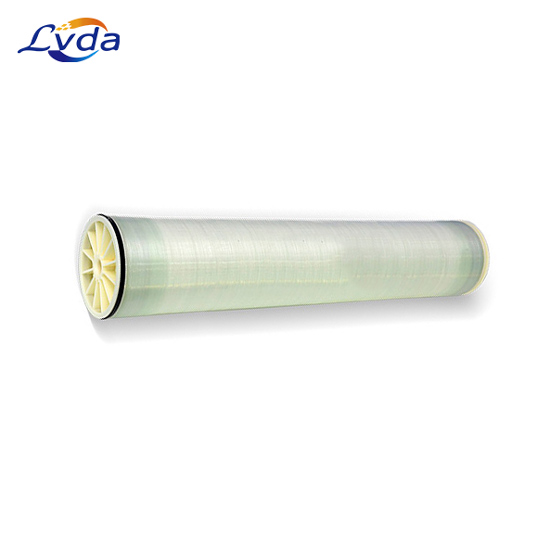

Model Number: ESPA2+

Permeate Flow : 12,000 gpd (45.4 m3 /d)

Salt Rejection : 99.6 % (99.5 % minimum)

Boron Rejection : 93.0 %

Membrane Polymer : Composite Polyamide

Membrane Active Area : 440 ft2 (40.8m2 )

Get Quotation

Product Details

ESPA2+ reverse osmosis membrane element provides consistency, high-quality filtrate, reliable performance, and long service life at a low feed pressure, which saves energy and reduces operation costs.

Application Data

Maximum Applied Pressure: 600 psig (4.16 MPa)

Maximum Chlorine Concentration: < 0.1 PPM

Maximum Operating Temperature: 113 °F (45 °C)

pH Range, Continuous (Cleaning): 2-10.6 (1-12)*

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 75 GPM (17.0 m3/h)

Minimum Ratio of Concentrate to Permeate Flow for any Element: 5:1

Maximum Pressure Drop for Each Element: 10 psi
