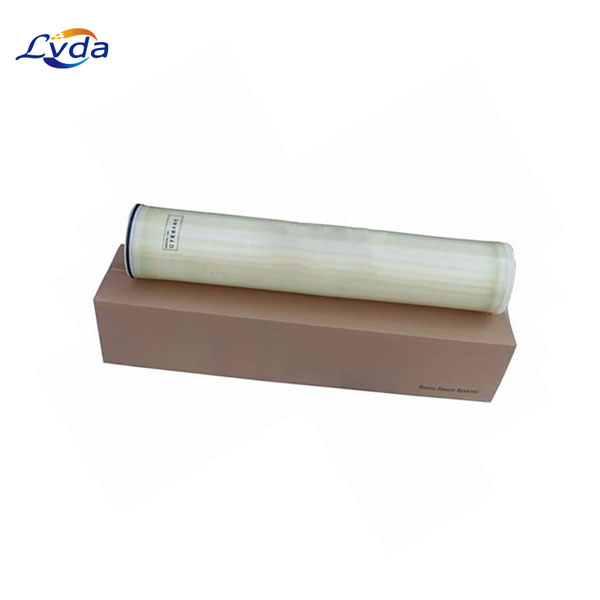

ESPA2-8040 Energy Saving RO elements

Product Details

ESPA2-8040 RO membranes are designed to filter brackish water while maximizing energy savings and includes low fouling technology. The RO elements in these membranes are of the highest standard, can be used in primary or pretreatment, and are suited for global municipalities and industries.

Application Data

Maximum Applied Pressure: 600 psig (4.16 MPa)

Maximum Chlorine Concentration: < 0.1 PPM

Maximum Operating Temperature: 113 °F (45 °C)

pH Range, Continuous (Cleaning): 2-10.6 (1-12)*

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 75 GPM (17.0 m3/h)

Minimum Ratio of Concentrate to Permeate Flow for any Element: 5:1

Maximum Pressure Drop for Each Element: 10 psi
