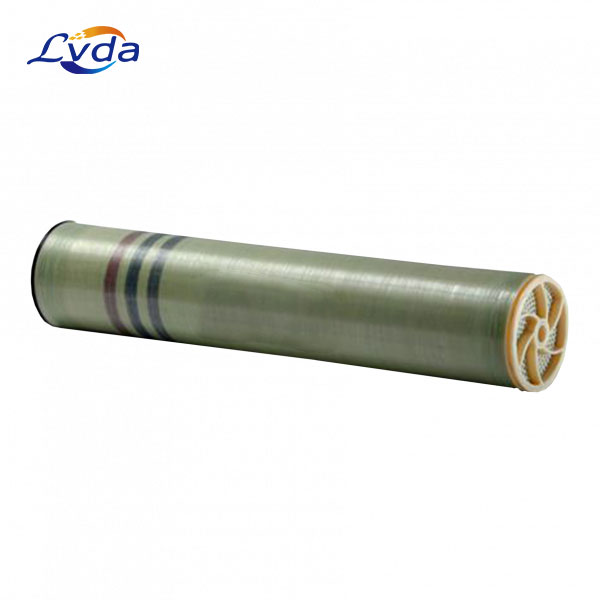

ESPA2-LD-MAX Energy Saving RO element
ESPA2-LD-MAX Energy Saving RO element

ESPA2-LD-MAX Energy Saving RO element

Other water filters

Model Number: ESPA2-LD-MAX

Permeate Flow : 12,000 gpd (45.4 m3 /d)

Salt Rejection : 99.6% (99.5% minimum)

Configuration : Low Fouling Spiral Wound

Membrane Active Area : 440 ft2 (40.9 m2 )

Feed Spacer : 34 mil (0.86 mm)

Get Quotation

Product Details

ESPA2-LD-MAX membranes provide optimum salt rejection and permeate flows. They are chosen when lower permeate TDS and lower feed pressures are needed.

Product Use and Restrictions

Maximum Applied Pressure: 600 psig (4.14 MPa)

Maximum Chlorine Concentration: < 0.1 ppm

Maximum Operating Temperature: 113 F (45 C)

pH Range, Continuous (Cleaning): 2-10.6 (1-12)

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 85 gpm (19.3 m3/h)

Minimum Brine Flow: 12 gpm (2.7 m3/h)

Maximum Pressure Drop for Each Element: 15 psi (0.10 MPa)
