ESPA2-LD Energy Saving RO elements
ESPA2-LD Energy Saving RO elements

ESPA2-LD Energy Saving RO elements

Other water filters

Model Number: ESPA2-LD

Permeate Flow : 10,000 gpd (37.9 m3 /d)

Salt Rejection : 99.6% (99.5% minimum)

Membrane Polymer : Composite Polyamide

Membrane Active Area : 400 ft2 (37.2 m2 )

Feed Spacer : 34 mil (0.86 mm)

Get Quotation

Product Details

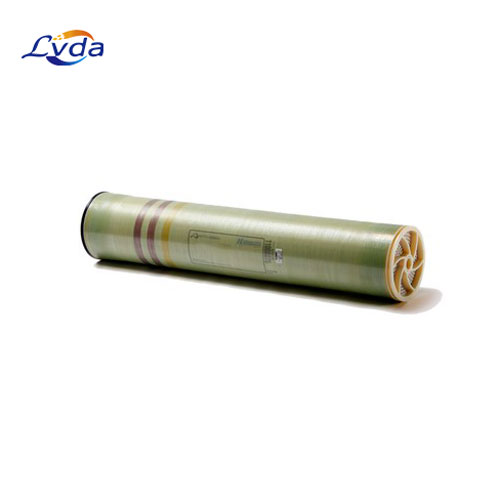

ESPA2-LD RO membranes are designed to filter brackish water while maximizing energy savings and includes low fouling technology. The RO elements in these membranes are of the highest standard, can be used in primary or pretreatment, and are suited for global municipalities and industries.

Product Use and Restrictions

Maximum Applied Pressure: 600 psig (4.14 MPa)

Maximum Chlorine Concentration: < 0.1 ppm

Maximum Operating Temperature: 113 °F (45 °C)

pH Range, Continuous (Cleaning): 2-10.6 (1-12)

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 85 gpm (19.3 m3/h)

Minimum Brine Flow: 12 gpm 2.7 m3/h)

Maximum Pressure Drop for Each Element: 15 psi (0.10 MPa)
