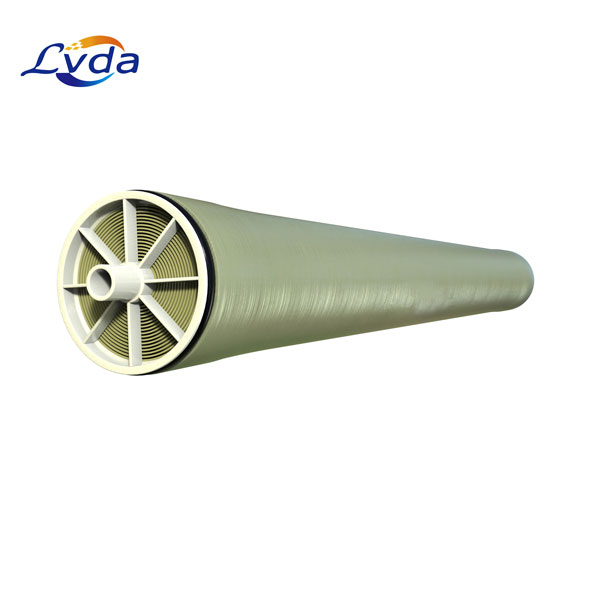

ESPA2-4040 Energy Saving RO element

Product Details

ESPA2-4040 RO membranes continue to meet the ever-increasing demands of the water treatment industry.Enjoy up to 250% greater productivity per membrane area compared with conventional polyamide membranes, at the lowest cost per gallon produced.

Application Data

Maximum Applied Pressure: 600 psig (4.16 MPa)

Maximum Chlorine Concentration: < 0.1 PPM

Maximum Operating Temperature: 113 F (45 C)

pH Range, Continuous (Cleaning): 2-10.6 (1-12)*

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 16 GPM (3.6 m3/h)

Minimum Ratio of Concentrate toPermeate Flow for any Element: 5:1

Maximum Pressure Drop for Each Element: 10 psi
