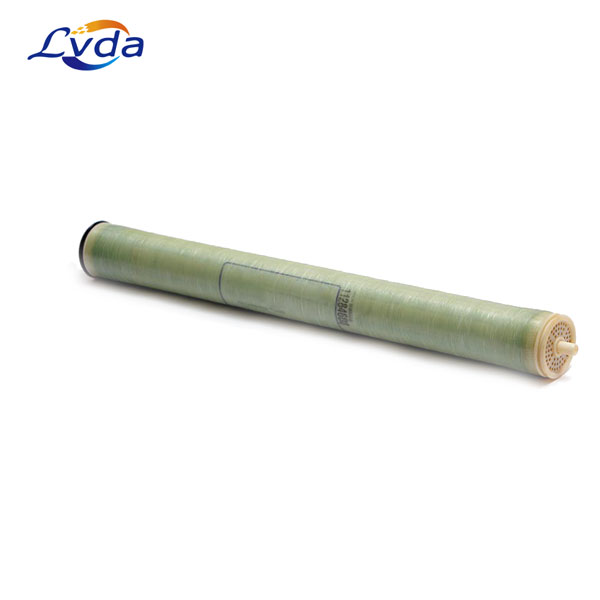

ESPA1-LD-4040 Energy Saving RO elements
ESPA1-LD-4040 Energy Saving RO elements

ESPA1-LD-4040 Energy Saving RO elements

Other water filters

Model Number: ESPA1-LD-4040

Permeate Flow : 2,450 gpd (9.27 m3 /d)

Salt Rejection : 99.4% (99.2% minimum)

Configuration : Low Fouling Spiral Wound

Membrane Active Area : 80 ft2 (7.43 m2 )

Feed Spacer : 34 mil (0.86 mm)

Get Quotation

Product Details

ESPA1-LD-4040 RO membranes continue to meet the ever-increasing demands of the water treatment industry.Enjoy up to 250% greater productivity per membrane area compared with conventional polyamide membranes, at the lowest cost per gallon produced.

Product Use and Restrictions

Maximum Applied Pressure: 600 psig (8.27 MPa)

Maximum Chlorine Concentration: < 0.1 ppm

Maximum Operating Temperature: 113 F (45℃)

pH Range, Continuous (Cleaning): 2-10 (1-12)

Maximum Feedwater Turbidity: 1.0 NTU

Maximum Feedwater SDI (15 mins): 5.0

Maximum Feed Flow: 16 gpm (3.6 m3/h)

Minimum Brine Flow: 3 gpm (0.7 m3/h)

Maximum Pressure Drop for Each Element: 15 psi (0.10 MPa)
