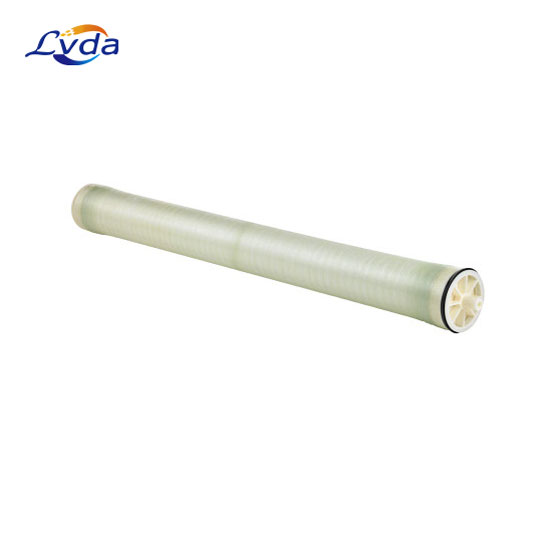

BW30LE-4040 Fiber Glass membrane element

Product Details

BW30LE-4040 delivers highest performance at lowest pressure resulting in less energy usage and lower costs. Elements with a hard shell exterior are recommended for systems with multiple-element housings containing three or more membranes, as they are designed to withstand higher pressure drops.

Specifications

Maximum Operating Temperature:113F (45C)

Maximum Operating Pressure:600 psi (41 bar)

Maximum Pressure Drop:15 psi (1.0 bar)

Maximum Feed Flow Rate:16 gpm (3.6 m3/hr)

pH Range, Continuous Operation: 2-11***

pH Range, Short-Term Cleaning:1-13* (30min)

Maximum Feed Silt Density Index: 5 SDI

Free Chlorine Tolerance: <0.1 ppm**

Permeate Flow Rate:2,500 GPD (9.5 m3/day)*

Stabilized Salt Rejection: 99.0%

Typical Properties

1. Permeate flow and salt rejection based on the following test conditions: 2,000 ppm NaCl, applied pressure: 150 psig (10.3 bar) for LE-4040 and 225 psig (15.5 bar) for BW30-4040 and BW30-2540, 77°F (25°C) and 15% recovery.

2. Permeate flows for individual elements may vary +/-20%.

3. For the purpose of improvement, specifications may be updated periodically
