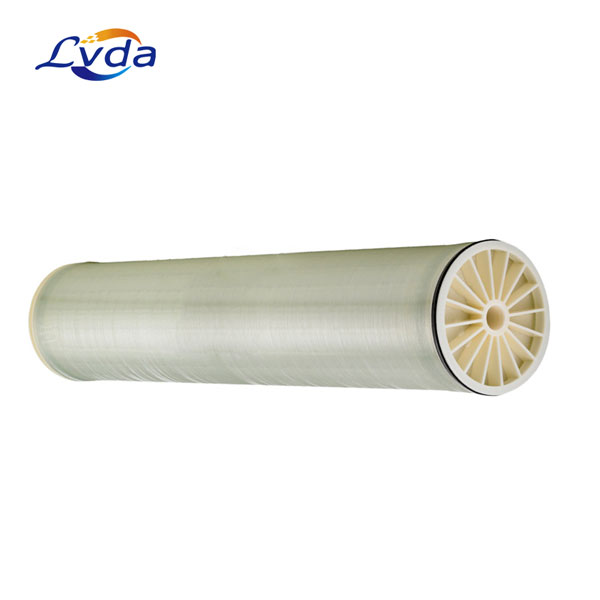

SW30HRLE-400 Sea water RO element

Product Details

SW30HRLE-400 elements offer very high productivity and rejection, enabling the lowest total cost of water for seawater desalination.

Properties

1. The above valuesare normalized to the following conditions: 32,000 ppm NaCl, 5 ppm boron, 800 psi (5.5 MPa), 77°F (25°C), pH 8, 8% recovery.

2. Permeate flows for individualelements may vary ± 15%.

3. Minimum Salt Rejection is99.65%.

4. Stabilized salt rejection isgenerallyachieved within 24 – 48 hoursof continuoususe, depending upon feedwater characteristicsand operating conditions.

5. Product specifications may vary slightlyas improvementsare implemented.

6. Active area guaranteed ± 5%.

Cleaning Limits

Maximum Operating Temperature: 113°F (45°C)

Maximum Operating Pressure: 1,200 psig (83 bar)

Maximum Element Pressure Drop :15 psig (1.0 bar)

Maximum Feed Silt Density Index (SDI): SDI 5

Free Chlorine Tolerance: < 0.1 ppm
