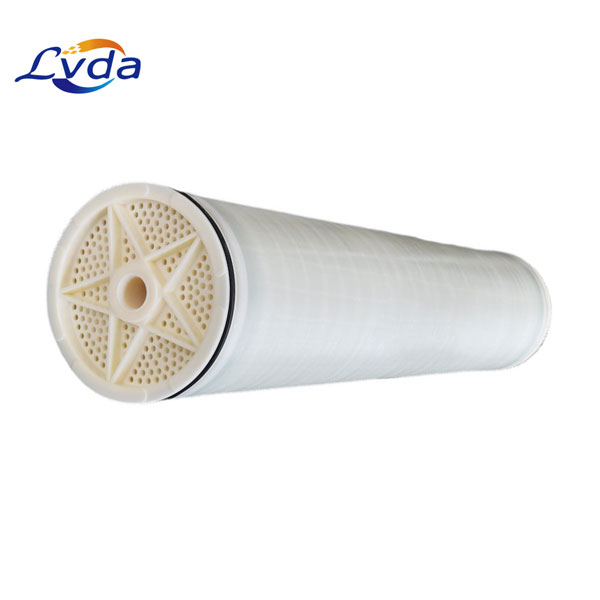

SW30HR-8040 Reverse Osmosis Membrane

Product Details

SW30HR-8040 membrane elements have on of the highest flow rates available to meet the water demands of both sea-based and land-based desalinators.

1. The above benchmark values are based on the following test conditions: 32,000 ppm NaCl, 5 ppm Boron, 800 psi (5.5 MPa), 77°F (25°C), pH 8 and 10% recovery.

2. Permeate flows for individual elements may vary +/-15%.

3. Product specifications may vary slightly as improvements are implemented.

4. Active area guaranteed +/-5%.

Operating Limits

Membrane Type: Thin-Film Composite

Maximum Operating Pressure: 1,015 psi (7.0 MPa)

Maximum Operating Temperature: 113°F (45°C)

Maximum Feed Turbidity: 1 NTU

Free Chlorine Tolerance :<0.1 ppm

pH Range, Continuous Operation: 2 – 11

pH Range, Short-Term Cleaning (30 min.) :1 – 13

Maximum Feed Flow :60 gpm (14 m3/h)

Maximum Feed Silt Density Index (SDI) :SDI 5
