Model Number:

Filtration precision : 0.1, 0.2, 0.45, 0.65, 1, 2, 3, 5, 10, 20, 30, 60 (μm).

Filter Media : Polypropylene thermal spray fiber membrane.

Support/Drainage : Polypropylene.

Housing/Center Tube/End Caps : Polypropylene.

Effective filter area : ≥0.40-0.70m²/10".

Filter element diameter : 69.0mm (2.7”).

Get Quotation

Product Details

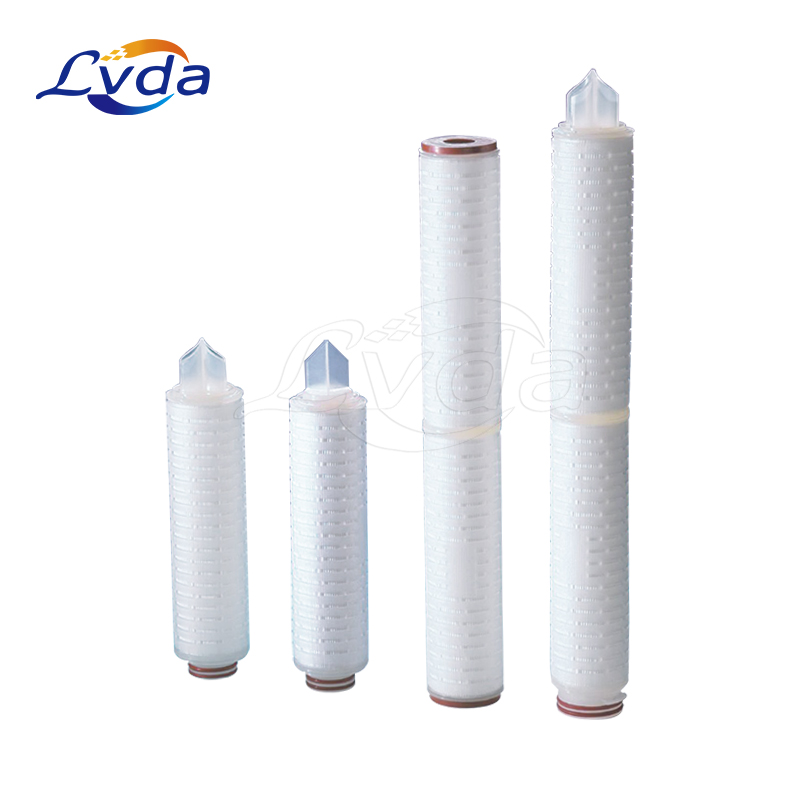

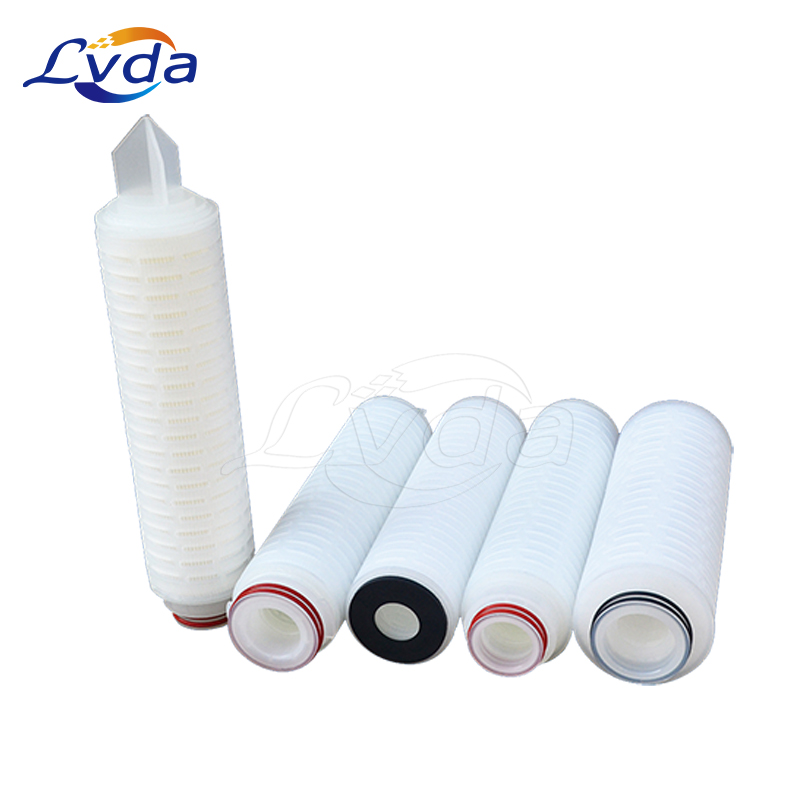

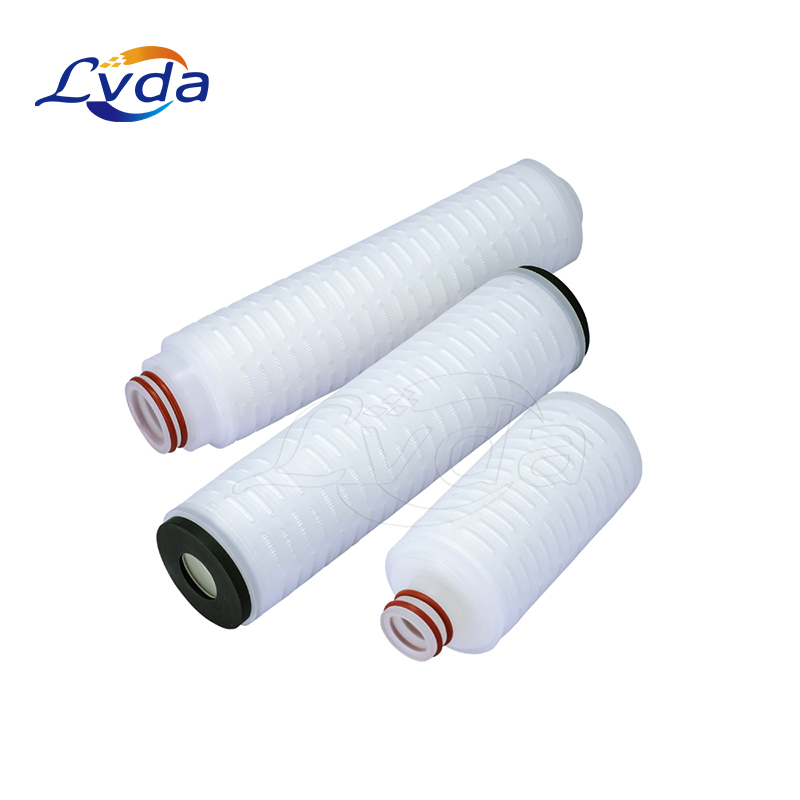

The polypropylene pleated filter element is an advanced fixed depth filter. Its unique low pressure difference, high flux, good filtration accuracy and low economic cost make it a new type of filter that replaces non-fixed filters such as winding, cotton cake and cardboard, and is well received by users. In addition, polypropylene pleated filter cartridges are available at affordable prices and are of high quality. We are a professional manufacturer of polypropylene pleated filter cartridges, with a variety of product models, and the materials used have been scientifically verified, which can play an effective role in filtration.


Product parameters

Filtration precision: 0.1, 0.2, 0.45, 0.65, 1, 2, 3, 5, 10, 20, 30, 60 (μm).

Filter Media: Polypropylene thermal spray fiber membrane.

Support/Drainage: Polypropylene.

Housing/Center Tube/End Caps: Polypropylene.

Sealing ring: see filter element selection table.

Sealing method: thermal fusion.

Effective filter area: ≥0.40-0.70m²/10".

Filter element diameter: 69.0mm (2.7”).


Product fetures

All polypropylene filter media, the filter media meet the relevant FDA requirements.

Wide chemical compatibility, can withstand PH value 1-14, large flow, low pressure difference, long service life.

A wide range of filtration precision and a large degree of selection can meet various application occasions.

Adopt hot melt process, firm structure and no foreign matter release.

Filter elements can be cleaned by common physical and chemical methods.

Sterilize with autoclave and in-line steam.


Product applications

Pharmaceutical industry: filtration of medicine, biology, cells, blood products, etc.

Chemical industry: filtration of organic solvents, inks, etc.

Electronics industry: pre-filtration of reverse osmosis water system, pre-filtration of deionized water system.

Food industry: filtration of drinking water, beer, beverages, mineral water, etc.

Gas filtration: filtration of compressed air, nitrogen, carbon dioxide, etc.

Others: filtration of electroplating liquid, metal cutting liquid, photoresist and magnetic media, etc.
