Replacement for High performance  hydraulic filter element S3050855
Replacement for High performance  hydraulic filter element S3050855
Replacement for High performance  hydraulic filter element S3050855

Replacement for High performance  hydraulic filter element S3050855

Replacement for Argo filters

Model Number: S3 0508 55

Temperature Range: : 45°F (-43°C) to +225°F (107°C)

filter mode: : Hydraulic oil filter

Operating pressure : 21bar-210bar

Weight: : 2KG

Length: : 3.15

Get Quotation

Product Details

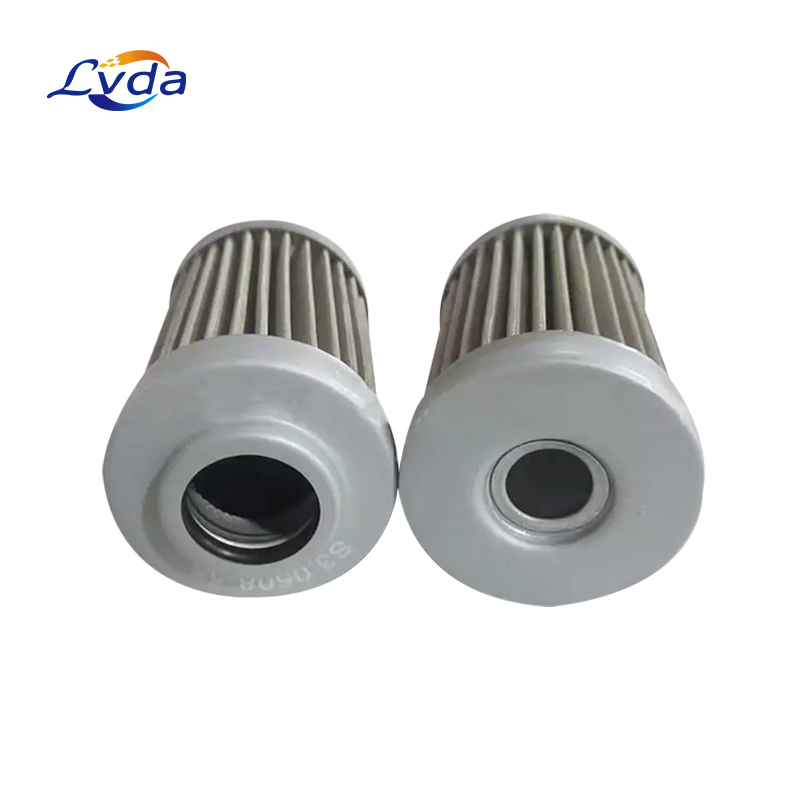

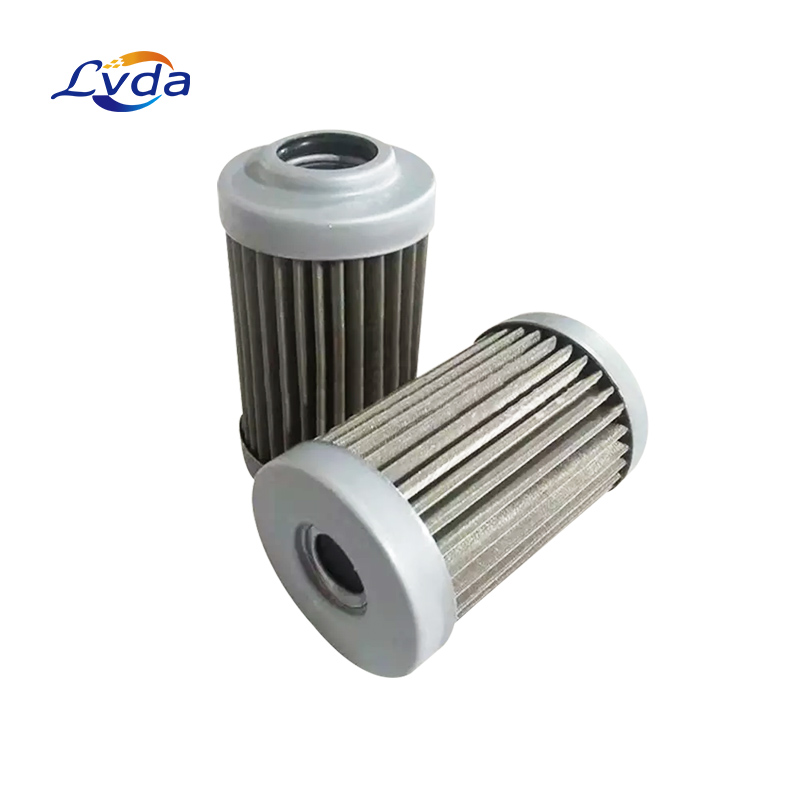

The hydraulic oil Filter Element is used in the oil circuit of the hydraulic system to remove the worn-out metal powder and other mechanical impurities in the hydraulic system to keep the oil circuit clean and prolong the life of the hydraulic system. LVDA S3.0508-55 hydraulic Oil Filter Element uses high-quality stainless steel materials to ensure the service life of the product and maintain the normal operation of machinery and equipment.


Product features

1. Strength requirements, production integrity requirements, bearing pressure difference, bearing installation external force, bearing pressure difference alternating load

2. The smoothness of oil flow requirements, flow resistance characteristics

3. Resistant to a certain high temperature and compatible with the working medium

4. The filter layer fibers cannot be displaced or fall off

5. Carry more dirt

6. Normal use in high altitude and cold areas

7. Fatigue resistance, fatigue strength under alternating flow

8. The cleanliness of the filter element itself must meet the standard


Product parameters



Model:

S3  0508 55

Place  of Origin:

Henan,  China

Brand  Name:

LVDA

Life  span:

6000-  8000h

Certificate:

ISO9001:2015

Quality:

100%  Tested

efficiency

0.99

Temperature  Range:

45°F  (-43°C) to +225°F (107°C)

filter  mode:

Hydraulic  oil filter

Operating  pressure:

21bar-210bar

Weight:

2KG

Seal  material:

Nitrile(H)/Fluorocarbon(Z)

pressure:

290  psid (20 bar)

Filter  media:

Fiberglass  and stainless steel wire woven

OD  Top:

1.75

OD  Bottom:

1.75

ID:

0.81

Length:

3.15


Product application

1.Automotive

2.Electronics

3.Food & Beverages

4.Chemical

5.Petrochemical

6.Plastics

7.Paint

8.General Industrial application
