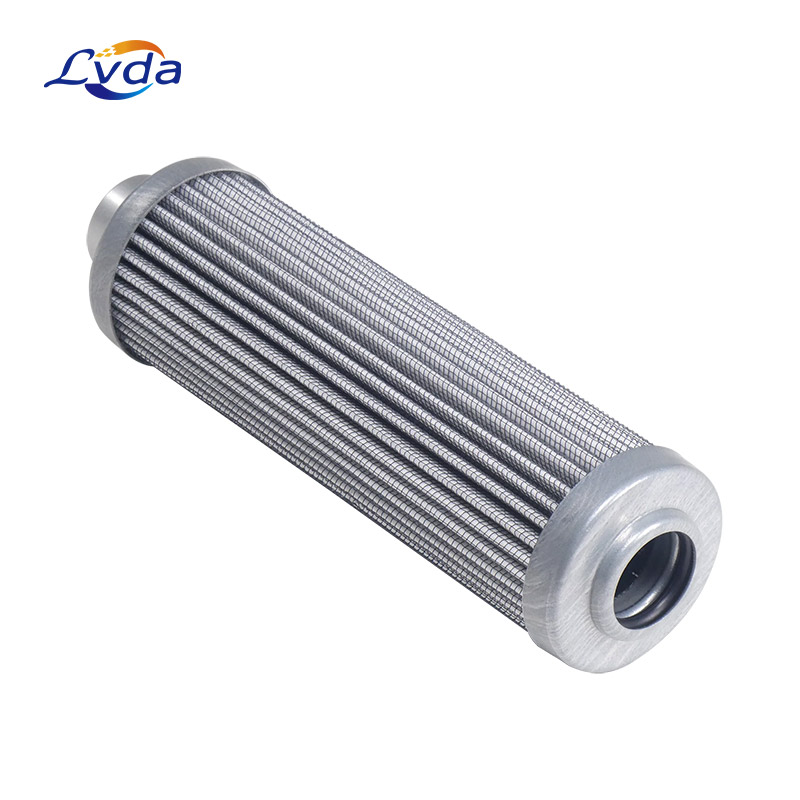

Replacement for Agro V3.0817-06 glass fiber hydraulic oil filter
Replacement for Agro V3.0817-06 glass fiber hydraulic oil filter
Replacement for Agro V3.0817-06 glass fiber hydraulic oil filter

Replacement for Agro V3.0817-06 glass fiber hydraulic oil filter

Replacement for Argo filters

Model Number: V3.0817-06

Length : 170mm

Specification : 78*170mm

Filtration Rating : 10 um

O-ring material : Vition, NBR

OD Top: : 3.1

Get Quotation

Product Details

A hydraulic filter is a component within a hydraulic system that removes damaging particulates by forcing hydraulic fluid through a porous filter element. The filter element catches contaminants and prevents them from re-entering the fluid flow and damaging other pieces of equipment further downstream. Contaminants range from dirt to water and reactive chemicals. Their size is on a scale of micrometers, meaning hydraulic filters must be properly sized to filter out even the smallest of particles.


Hydraulic filters are placed at various locations throughout a system to catch contaminants created at different points in the process. For ideal filtration, filters would be before and after the pump, in the return lines, off-line and within the reservoir. However, considerations for cost and space impact where designers choose to place filters. There are a few primary locations, which determine the types of hydraulic filters used:Return lines,Suction filters,Pressure lines, Off-lines.

ISO CODES:

ISO 2941 Collapse & Burst Resistant

ISO 2942 Fabrication & Integrity Test

ISO 2943 Material Compatibility with Fluids

ISO 3724 Flow Fatigue Characteristics

ISO 3968 Pressure Drop vs. Flow Rate

ISO 16889 Multi-pass Performance Testing


Product features

1.Increases the life of engine

2.Improved engine performance

3.Boosts the power of the engine

4.Better fuel efficiency

5.Reduced emissions

6.Protects fuel injectors and fuel pumps from contaminants


Product parameters


Model:

V3.0817-06

Place  of Origin:

Henan,  China

Brand  Name:

LVDA

Life  span:

6000-  8000h

Certificate:

ISO9001

Quality:

100%  Tested

Working  pressure:

-21~210  bar

Working  Temperature

-30~110

Od

78mm

Length

170mm

Specification

78*170mm

Filtration  Rating

10  um

O-ring  material

Vition,  NBR

OD  Top:

3.1

OD  Bottom:

3.1

ID:

1.605

Length:

6.68

End  Caps:

Corrosion  Resistant Steel

Center  Tube:

Corrosion  Resistant Steel

Media:

Microglass  Fiber Media

Seal:

Buna  (Nitrile)

Collapse  Rating:

450  psid


Product application

1.Mainly used for steel mill ,

2.power plant ,

3.mine/resource depot ,

4.paper mill,

5.paper making enterprise power hydraulic station system filtration,

6.petroleum,

7.metallurgy,

8.chemical industry,

9.railway,

10.oil field,

11.oil exploitation,

12.pharmaceutical factory aviation,

13.electronics,

14.power,

15.pharmaceutical,

16.environmental protection,

17.atomic energy,

18.nuclear industry,

19.natural gas,

20.refractory materials,

21.fire fighting equipment.
