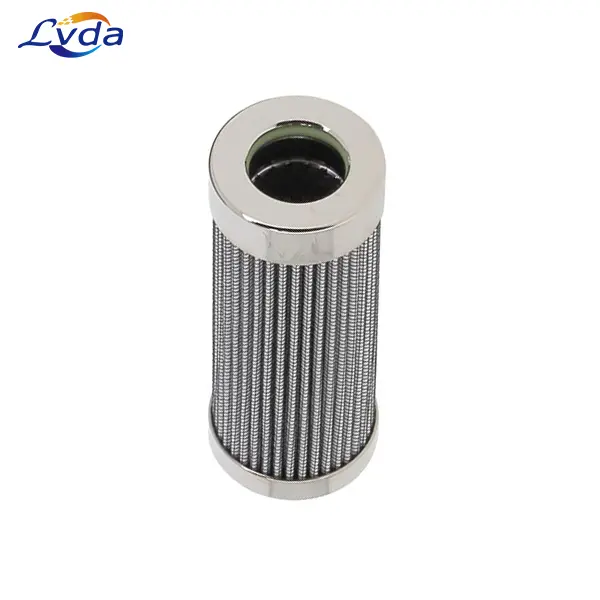

V3045V1H15 Hydraulic Oil Filter

Product Details

V3045V1H15 is a high-pressure hydraulic filter element originally manufactured by lvda. It is widely used to remove particulate contaminants from hydraulic fluids, protecting sensitive downstream components like valves and pumps.

Filter Media: Microglass for high dirt-holding capacity and efficiency.

Micron Rating: 10 to 15 microns.

Seal Material: Viton (FKM).

Dimensions: Approximately 114mm in length and 45mm in outer diameter.

Flow Direction: Outside-to-inside flow.

Cross Reference

Donaldson: P167181

Rexroth: R928016886

Argo: P3.0730-51

SF-Filter: HY20552V
