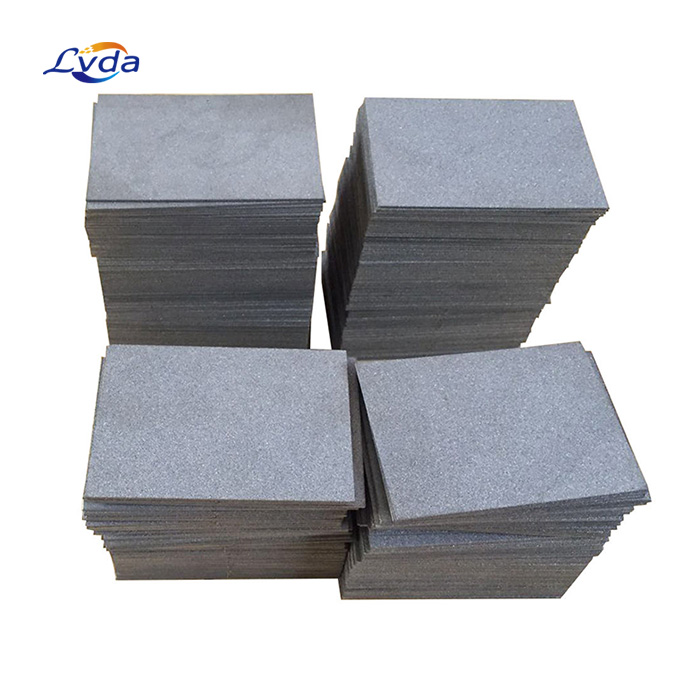

High Porosity And High Permeability Platinum Plated Titanium Fiber Felt Used In Electrolyzer Stacks As The Flow Field Or Diffuser Material
High Porosity And High Permeability Platinum Plated Titanium Fiber Felt Used In Electrolyzer Stacks As The Flow Field Or Diffuser Material

High Porosity And High Permeability Platinum Plated Titanium Fiber Felt Used In Electrolyzer Stacks As The Flow Field Or Diffuser Material

metal material

Model Number:

Material : Titanium

Porosity : 55% -75%

Thickness : 0.2-2mm

Size : Customizable

Platinum plating thickness : 0.5um, 1um, 2um

Get Quotation

Product Details

Platinum plated titanium felt is a special material that is mainly used in electrolytic cell single cells and stacks, especially on the oxygen (anode) side. Due to its unique properties, platinum plated titanium felt has become an ideal alternative to traditional carbon-based gas diffusion layers (GDLs).


In electrolytic cells, platinum plated titanium felt plays an important role as a flow field or diffuser material. When the electrolytic cell is working, oxygen is reduced to hydroxide ions (OH-) on the anode side. In this process, the presence of oxygen and voltage causes the carbon-based GDL material to be consumed and converted into carbon dioxide gas. This not only reduces the electrolytic voltage but also leads to rapid consumption of the carbon GDL, which affects the performance of the electrolytic cell. Platinum plated titanium felt can effectively avoid this problem because it is not easily oxidized and can maintain stable conductivity, even under higher pressure.


High porosity and high permeability platinum-plated titanium fiber felt is a unique material that combines the excellent properties of titanium and platinum to offer a superior performance in electrolyzer stacks. The felt is composed of fine titanium fibers that are randomly intertwined, forming a three-dimensional network with a high surface area and porosity. The high porosity enables the felt to have excellent gas diffusion properties, allowing for efficient transport of reactants and products within the electrolyzer.


The titanium fibers are then plated with a thin layer of platinum, which serves as an electrocatalyst to promote the desired chemical reactions. Platinum is an ideal choice for this purpose due to its high chemical stability, excellent electrical conductivity, and outstanding catalytic properties. The use of platinum-plated titanium fiber felt in electrolyzer stacks significantly enhances the overall efficiency and performance of the device.


Parameters

Material : Titanium

Porosity : 55% -75%

Thickness : 0.2-2mm

Size : Customizable

Platinum plating thickness : 0.5um, 1um, 2um

Place of Origin : Henan, China


Advantages

1. Higher porosity and permeability, leading to improved gas diffusion and reduced mass transport limitations.

2. Excellent chemical stability and corrosion resistance, ensuring a long service life and reduced maintenance costs.

3. High electrical conductivity, enabling efficient electron transfer and reduced electrical resistance within the electrolyzer stack.

4. Flexibility in design and fabrication, allowing for the customization of the felt's properties to suit specific electrolyzer applications.


High porosity and high permeability platinum-plated titanium fiber felt is a promising material for use in electrolyzer stacks as the flow field or diffuser material. Its unique combination of properties, such as high porosity, high permeability, excellent chemical stability, and electrical conductivity, make it an ideal choice for enhancing the performance and efficiency of electrolyzers. As the demand for clean and sustainable energy sources continues to grow, the development and application of advanced materials like this will play a crucial role in driving the widespread adoption of electrolyzer technology for hydrogen production and other chemical processes.
