metal material

Model Number:

Filtration precision : 0.65um-100um

Joint : M20; M30; 222; 226 (Customized)

Temperature-resist grade : ≤280℃

Get Quotation

Product Details

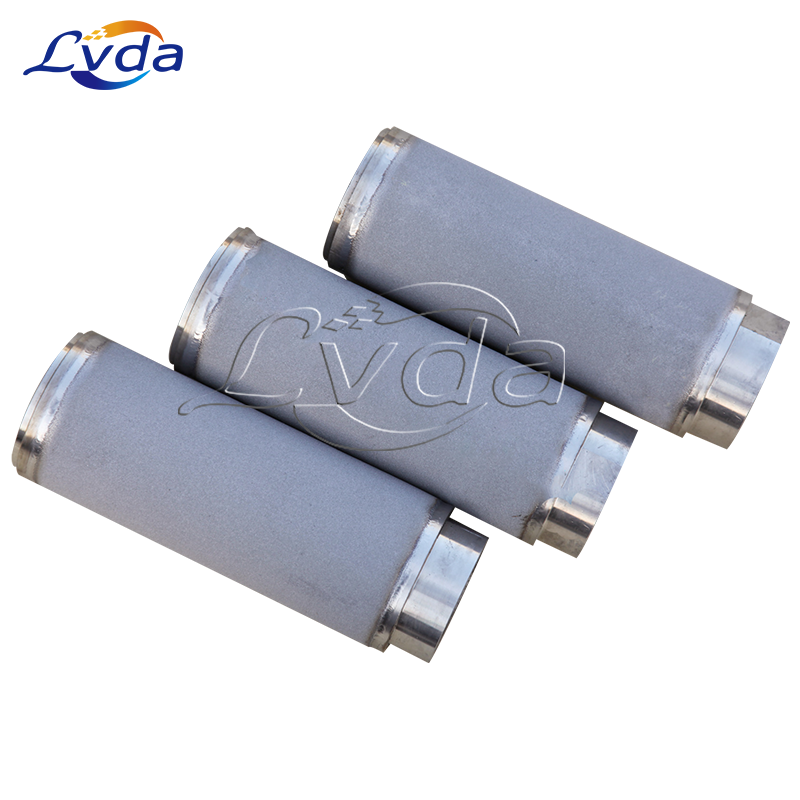

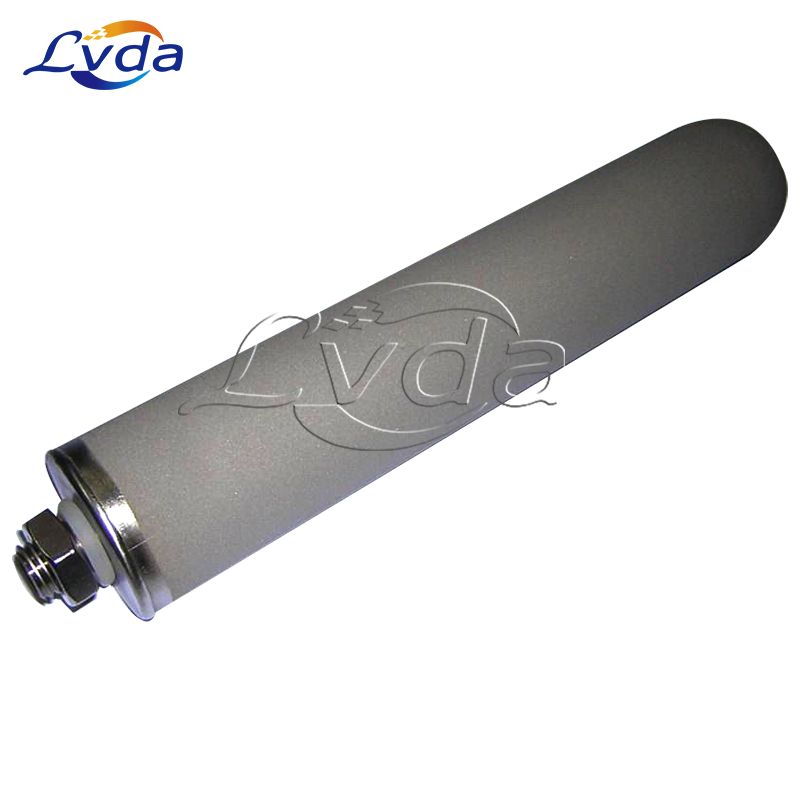

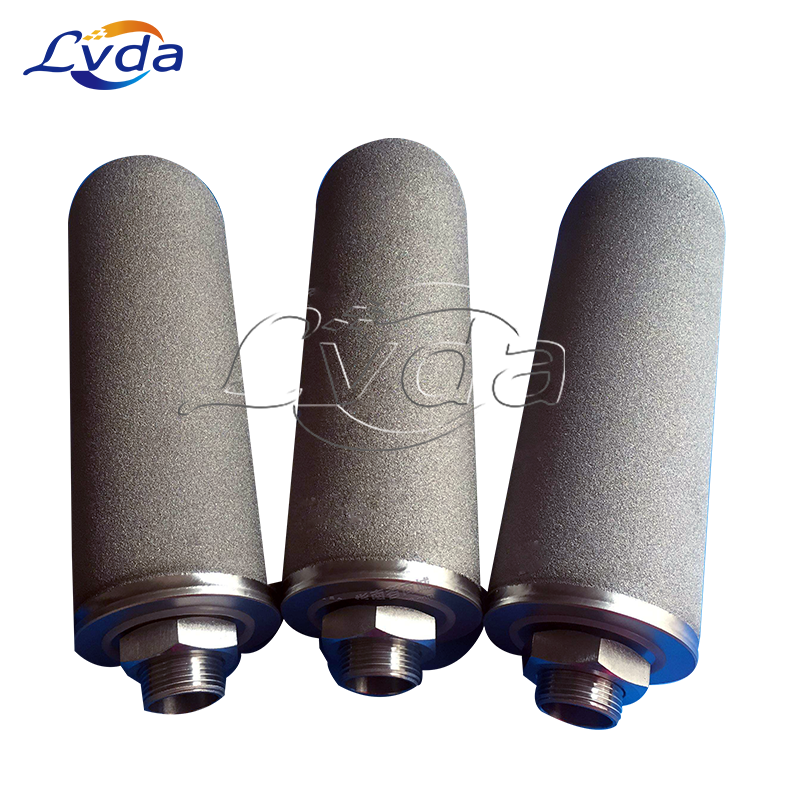

Metal titanium rod filter element is a kind of porous filter elements sintered in high temperature & vacuum after screening and cooling, which is made from industrial high-purity titanium.

Technical data:

Precision
0.65um-100um
Porosity
28-50%
Air permeability
0.02-20M3cm/m2h.mmH2O
Compression strength
0.5-1.5Mpa
Temperature resistance
280℃(wet)
Maximum work pressure difference
0.6Mpa
Diameter
Φ30mm Φ50mm Φ60mm

Advantages:

1.High separation efficiency.

2.High penetration efficiency.

3.Good chemical stability.

4.No fallen microparticles.

5.Good mechanical performance.

6.Smaller area and larger flow.

7.Strong antimicrobial ability.

8.Good molding process.

9.Easy to clean.

10.Longer service life.

Applications:

1.Filtration of corrosive medium: hydrochloric acid; sulfuric acid; hydroxide

2.Filtration of iron, copper, sodium from the chloride solutions.

3.Food and beverage industry: White wine, vegetable oil, soy sauce, vinegar, beer, Spa water, etc.

4.Chemical industry: Carbon removal filtration of liquid raw materials or pharmaceutical intermediates.

5.Security filtering of RO and EDI system.

6.Filtration of ozone sterilization and ozone aeration.
