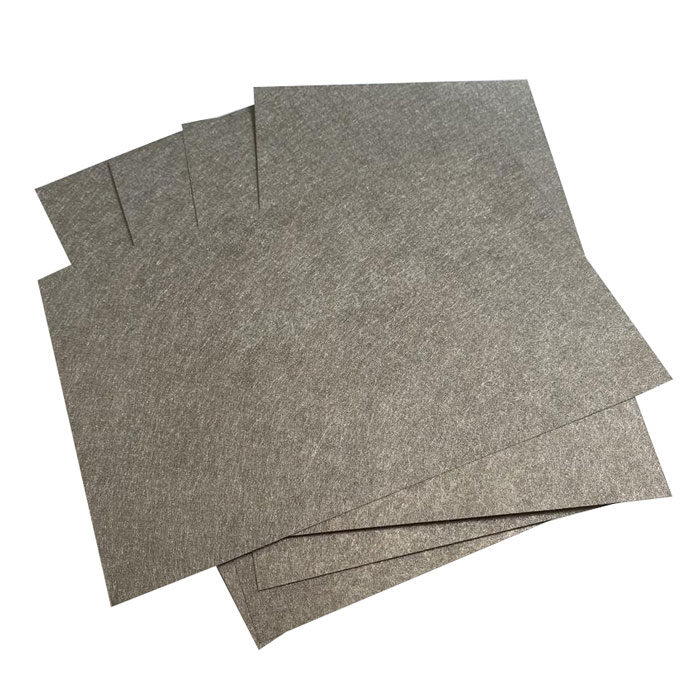

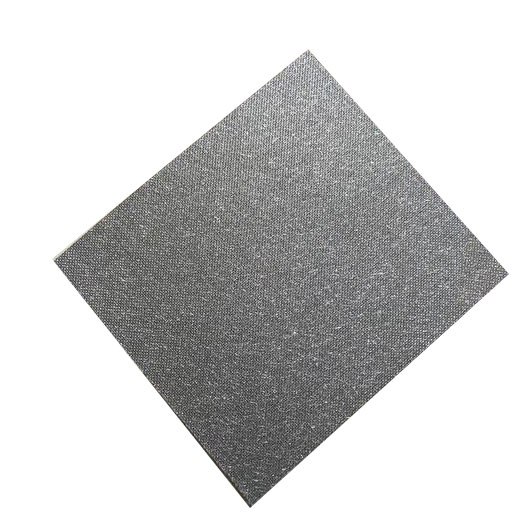

Titanium felt

Product Details

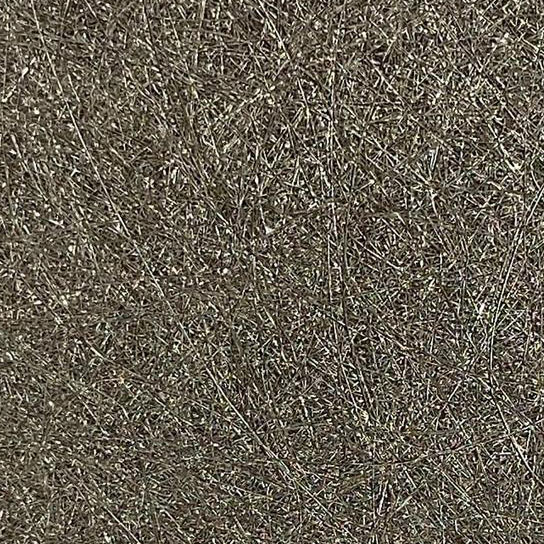

The titanium fiber felt filter material is made of micron -level pure titanium fiber through special paving process and special high -temperature vacuum sintering process. Compared with titanium fiber felt and titanium titanium sinking panel, there are excellent three -dimensional mesh porous structures, high pore rate, several times large surface area, uniform distribution of pores, strong corrosion resistance, good water penetration performance, high pore rate, heat dissipation properties, heat dissipation properties Good, low voltage of current density, stable performance, long life and other characteristics.

It is widely used in various industries such as fuel cells, military industry, aerospace, civilian, medical care and other industries. Especially hydrogen fuel cell diffusion medium: used for proton switching membrane (PEM) hydrolytic fluid diffusion layer.

Features

1: Uniform and highly accurate pore degree;

2: Stable shape, small filtration resistance, high permeability;

3: Good mechanical properties, impact resistance and intercourse load;

4: High temperature resistance, use high temperature up to 900 ° C;

5: The breathability and separation effect are stable;

6: Good chemical stability, high temperature corrosion resistance

7: Mature production, seamless welding length of 1500mm;

8: Easy to regenerate, with anti -cleaning and long service life.

Technical Parameters

High pore rate: 60-70%

Thickness: 0.25/ 0.40/ 0.6/ 0.8 mm

Average diameter equivalent effect: 3-60 μm

Size: 5x5 cm, 10x10 cm and 20x20 cm

Low pore rate: 50-60%

Thickness: 0.25/ 0.40/ 0.6/ 0.8 mm

Average diameter equivalent effect: 30-60 μm

Size: 5x5 cm, 10x10 cm and 20x20 cm can be customized
