Product Details

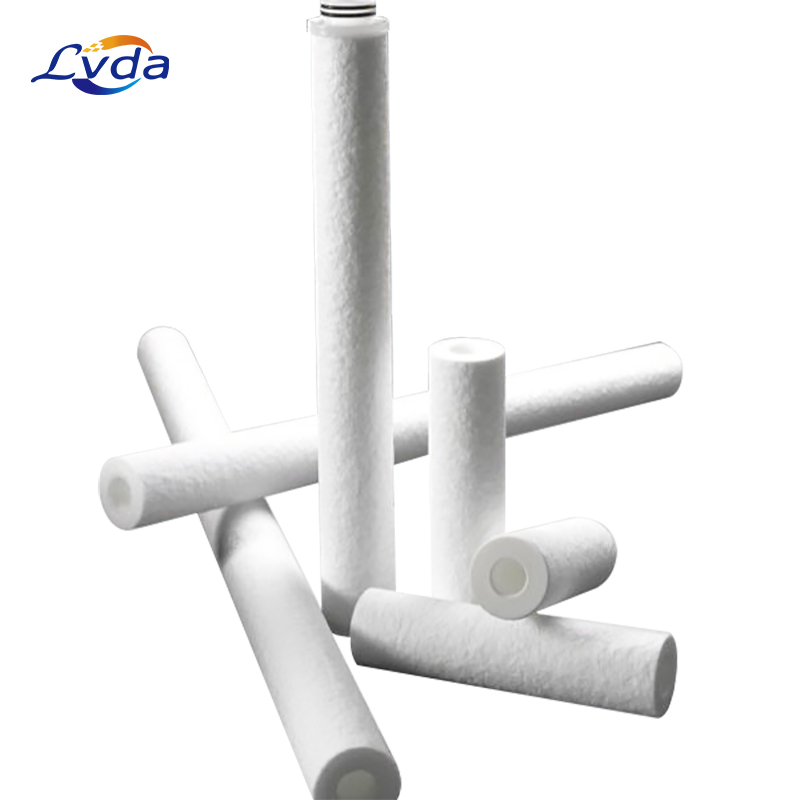

Get high dirt holding capacity and compatibility with a wide range of liquids with Pall's Claris family filters. This cartridge is 30-inch long with a 1-micron removal rating. It features an SOE fin end, external 226 O-rings that retrofit other manufacturers' Code 7, and silicone gaskets.
Pall Water Claris, Polypropylene media, 1 micron, 30 inch- Industrial Depth filter, 2.5" diameter with Double Open End (DOE) end configuration and no gasket
Melt blown depth filters with thermally bonded fibers for consistent and reliable filtration.
Graded pore structure and high void volume enhance dirt-holding capacity providing longer service life.
High strength extruded core for increased cartridge stability and ease of disposal.
All Polypropylene construction allows for broad chemical compatibility.
Product features
1.Claris Series Filter Cartridges
2.Melt blown depth filters with thermally bonded fibers for consistent and reliable filtration.
3.Graded pore structure and high void volume enhance dirt-holding capacity providing longer service life.
4.High strength extruded core for increased cartridge stability and ease of disposal.
5.All Polypropylene construction allows for broad chemical compatibility.
Product parameters
Removal Rating | 1 µm |
Membrane Material | Polypropylene |
Cartridge Length (Imperial) | 30 in |
Cartridge Length (Metric) | 762 mm |
Cartridge Length (Metric) | 76.2 cm |
Gasket / O-Ring Material | Silicone |
End Configuration Code | M7 |

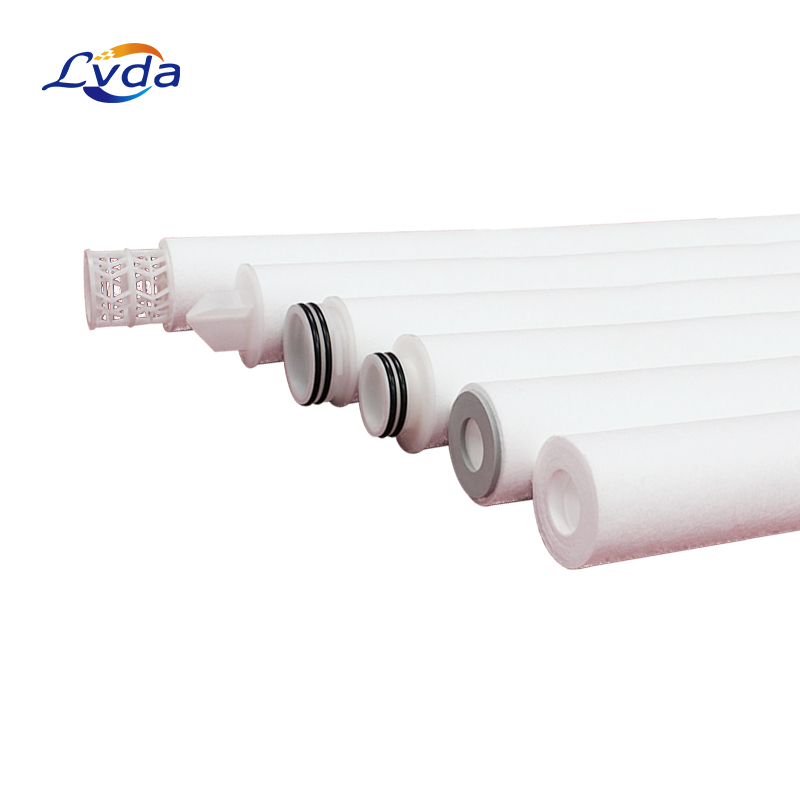

End Configuration | M7 - SOE fin end, external 226 O-rings (retrofits other manufacturers’ Code 7) 5 |
Change Out Differential Pressure | 2.4 bard |
Cartridge Outer Diameter (OD) (Imperial) | 2.5 in |
Cartridge Outer Diameter (OD) (Metric) | 6.4 cm |
Gasket O-Ring Code | S |
Cage, Core, Fin End and Endcap | Polypropylene |
Diameter: | 2.5" |
End Configuration: | Double Open End (DOE) |
Filter Grade: | 1 µm |
Filter Length: | 30" |
Filter Media Type: | Depth |
Flow: | Outside to Inside |
Material: | Polypropylene |
Maximum Differential Pressure: | 50 psi pressure at 68°F, 25 psi pressure at 140°F |
O-Ring: | No gasket |
Removal Efficiency: | Nominal |
Product application
1.Industrial water pretreatment
2.Protection of reverse osmosis elements
3.Wastewater and water reuse systems
4.Ground water and surface water treatment
5.Seawater desalination pretreatment
