Replacement Hydraulic Suction Oil Filter Element WU-160*80-J WU-160*100-J WU-160*180-J
Replacement Hydraulic Suction Oil Filter Element WU-160*80-J WU-160*100-J WU-160*180-J
Replacement Hydraulic Suction Oil Filter Element WU-160*80-J WU-160*100-J WU-160*180-J
Replacement Hydraulic Suction Oil Filter Element WU-160*80-J WU-160*100-J WU-160*180-J

Replacement Hydraulic Suction Oil Filter Element WU-160*80-J WU-160*100-J WU-160*180-J

Replacement for Leemin Filters

Model Number: HY-D501.5.10ES

Dia.: : 40 mm

Flow rater: : 160 l/min

filter precision : 0~180

Conneting: : Thread

Original pressure loss : <=0.01 MPa

Get Quotation

Product Details

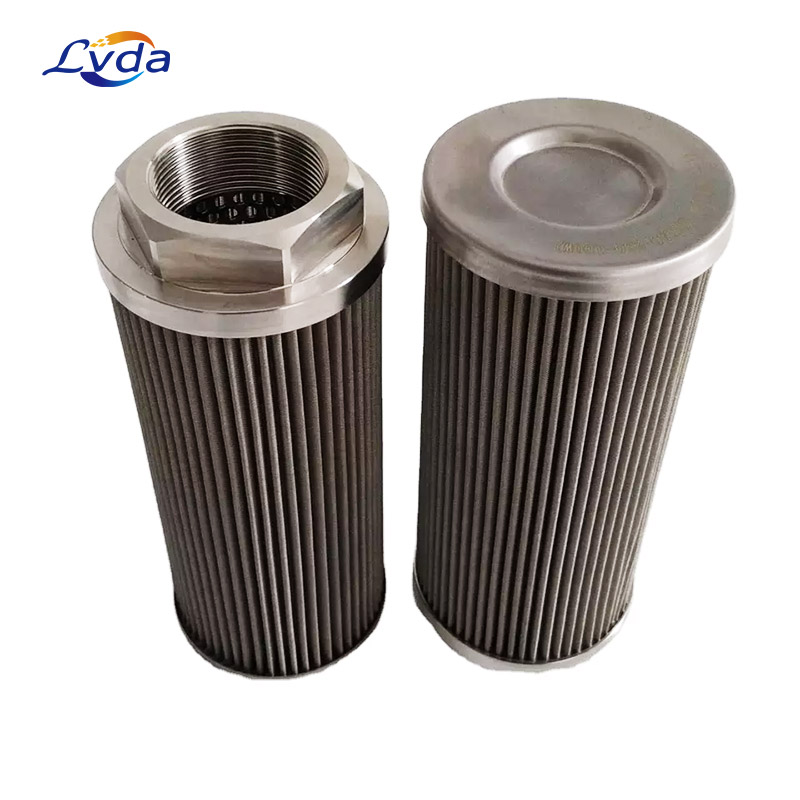

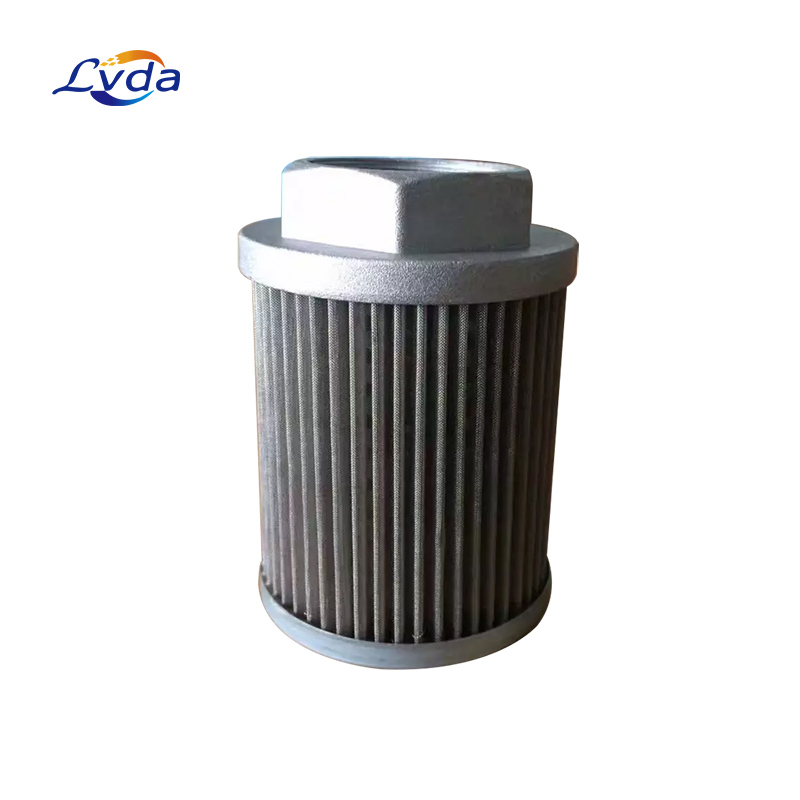

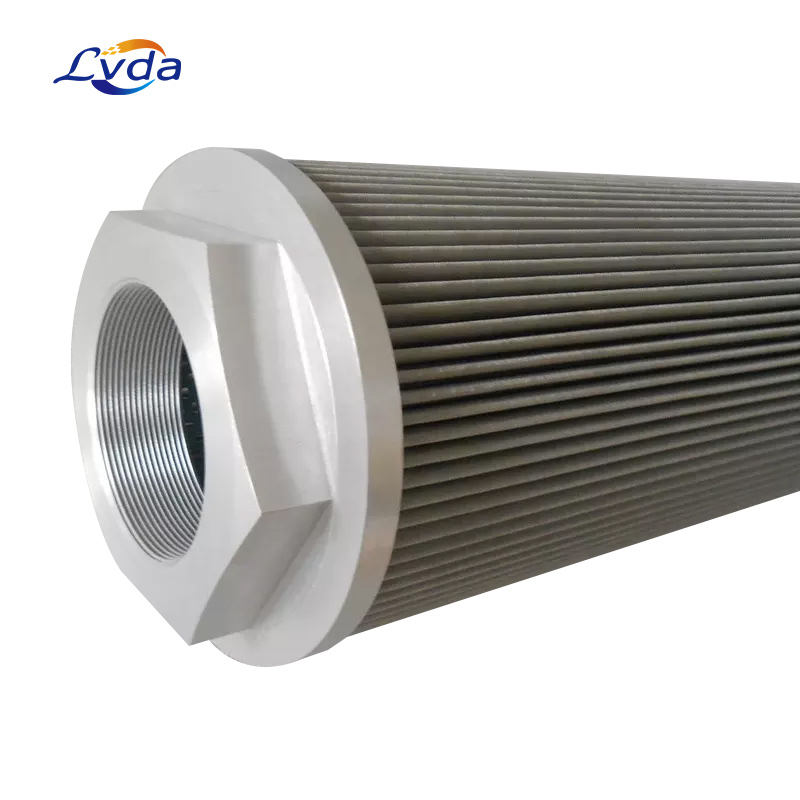

The filter belongs to the coarse filter and is generally installed at the oil suction port of the oil pump. It is used to protect the oil pump from absorbing large mechanical impurities. The filter has simple structure, large oil passing capacity and small resistance, and there is no pipe type or flange type connection. It is divided into two types: wire mesh filter and notched wire filter. The product wu160*180-J belongs to wire mesh filter.


Product features

1.Resistance to high temperature, high pressure.

2.High strength, high filter rating, good dirt holding capacity, repeated washing

3.Filter layers, ripple neat

4.Easy to install

5.Strong inner skeleton

6.Segregated Depth Filtration

7.High Dirt Holding Capacity

8.Reduce bearing wear

9.extend the use of oil life.



Product parameters

Model:

wu160*180-J

Place  of Origin:

Henan,  China

Brand  Name:

LVDA

Life  span:

1800-2000h

Certificate:

ISO9001

Quality:

100%  Tested

Weight:

1KG

Material:

Fiberglass,wire  mesh,

Function:

Oil  Filter Catridge

working  temp:

-35----+200℃

Pressure:

30-210bar

Filtration  efficiency:

 99.99%

Dia.:

40  mm

Flow  rater:

160  l/min

filter  precision

0~180

Conneting:

Thread

Original  pressure loss

<=0.01  MPa

By-pass  valve settting

0.02MPa



Product application

1.Mainly used for steel mill ,

2.power plant ,

3.mine/resource depot ,

4.paper mill,

5.paper making enterprise power hydraulic station system filtration,

6.petroleum,

7.metallurgy,

8.chemical industry,

9.railway,

10.oil field,

11.oil exploitation,

12.pharmaceutical factory aviation,

13.electronics,

14.power,

15.pharmaceutical,

16.environmental protection,

17.atomic energy,

18.nuclear industry,

19.natural gas,

20.refractory materials,

21.fire fighting equipment.
