Product Details

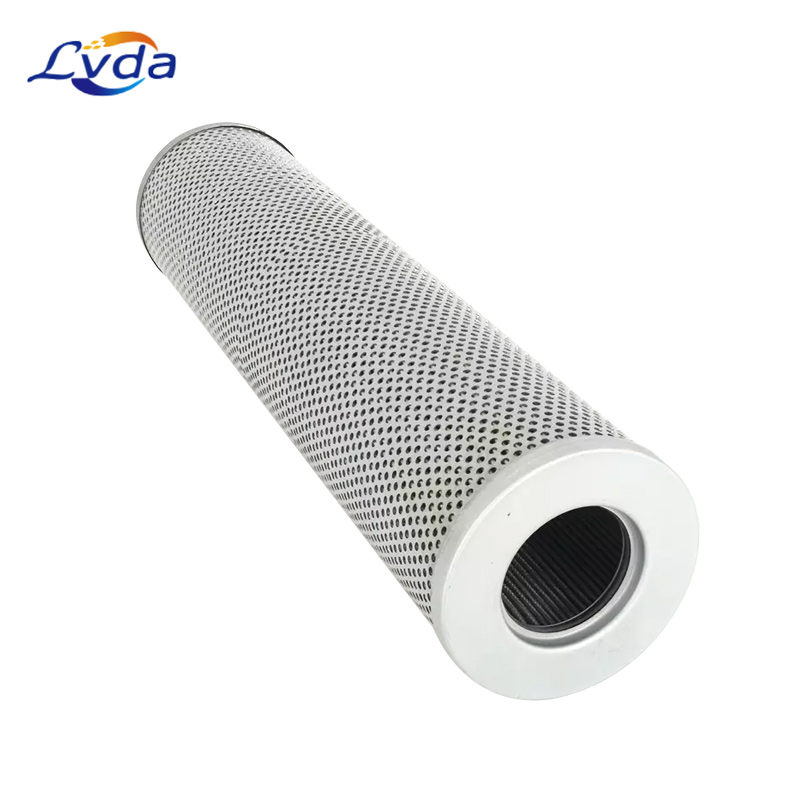

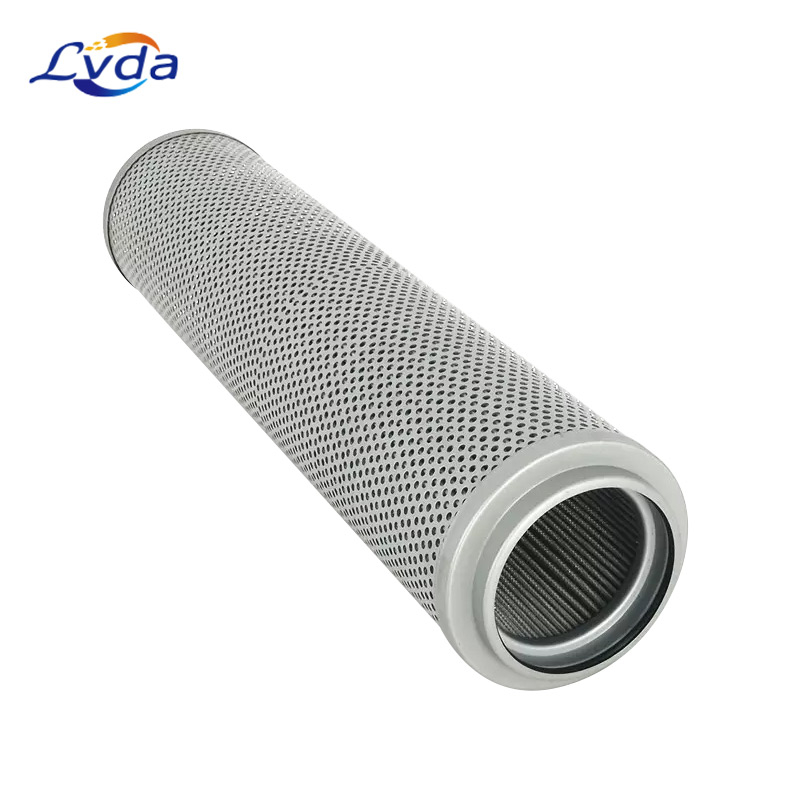

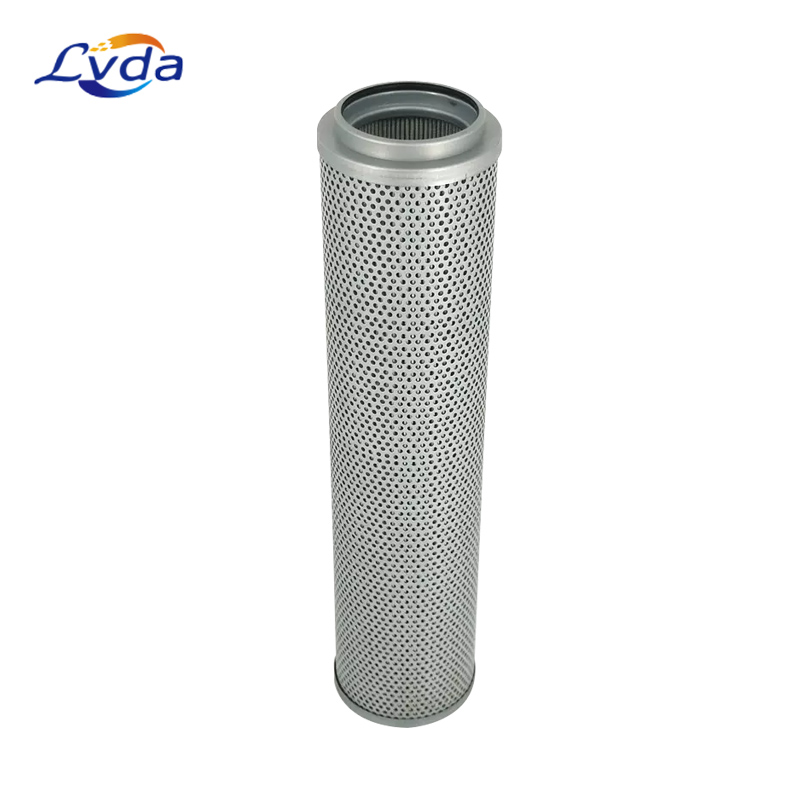

The filter element of the return oil filter is used for fine filtering of the return oil of the hydraulic system to filter out the metal particles produced by the wear of the components in the hydraulic system and the rubber impurities of the seals, so as to keep the oil flowing back to the oil tank clean.
The oil filter is designed to filter oil directly, which makes it very convenient to replace the filter element or add oil to the oil tank; The filter element can be replaced or the oil tank can be filled by simply unscrewing the filter cover (cleaning cover) of the filter, and two M18s are set in the filter head × 1.5 Oil port, which can be used for filtering when a transmitter is installed on either side or a small amount of oil in the system flows back to the oil tank. The diffuser with liquid flow diffuser is set at the bottom of the oil return cylinder, which can make the oil return medium flow smoothly into the oil tank, and is not easy to generate bubbles, thus reducing the re-entry of air and reducing the disturbance of deposited pollutants.
Liming filter element is made of glass fiber filter material; The utility model has the advantages of high filtering accuracy, large oil passing capacity, small original pressure loss, large sewage holding capacity, etc. The filtering accuracy is calibrated by the filtering accuracy, and the filtering ratio β 3， β 5， β 10， β 20 ≥ 200, filtration efficiency η ≥ 99.5%, the evaluation method is ISO16889-99 and GB/T18853-2002.
Product features
1. OEM quality standard guaranteed.
2.Product upgrading and expansion of species.
3.Good quality with competitive prices.
4.Flexible and convenient logistic service.
5.Excellent and high-quality control.
6.Long lasting working life time.
Product parameters
Model | RFAX-400*20 |
Place of Origin | Henan, China |
Brand Name | LVDA |
Life span | 2000- 4000h |
Certificate | ISO9001:2008 |
Quality | 100% Tested |
Filtering precision: | 1-30 μ m |
Flow: | 400L/min |
Filter material: | glass fiber, stainless steel mesh |
Filter medium: | general hydraulic oil, water monoethylene glycol |
Type: | Hydraulic Oil Filter |
Weight: | 1.5kg |
Dimension(L*W*H): | 105*105*400 |
Working flow: | 25L/min |
Working pressure: | 1.6MPa |
Product application
1. Metallurgy: It is used for filtering the hydraulic system of steel rolling mill and continuous casting machine and filtering various lubricating equipment.
2. Petrochemical: separation and recovery of products and intermediate products in oil refining and chemical production, particle removal and filtration of oilfield well water and natural gas.
3. Textile: purification and uniform filtration of polyester melt during wire drawing, protective filtration of air compressor, oil and water removal of compressed gas.
4. Electronics and pharmacy: pretreatment filtration of reverse osmosis water and deionized water, pretreatment filtration of cleaning solution and glucose.
5. Thermal power and nuclear power: purification of lubricating system, speed control system and bypass control system oil of gas turbine and boiler, and purification of feed pump, fan and dust removal system.
6. Mechanical processing equipment: lubrication system and compressed air purification of paper machinery, mining machinery, injection molding machines and large precision machinery, and dust recovery and filtration of tobacco processing equipment and spraying equipment.
7. Railway internal combustion engine and generator: filtering of lubricating oil and engine oil.
8. Automobile engine and construction machinery: air filter, oil filter, fuel filter for internal combustion engine, various hydraulic oil filters, diesel oil filters and water filters for construction machinery, ships and trucks.
