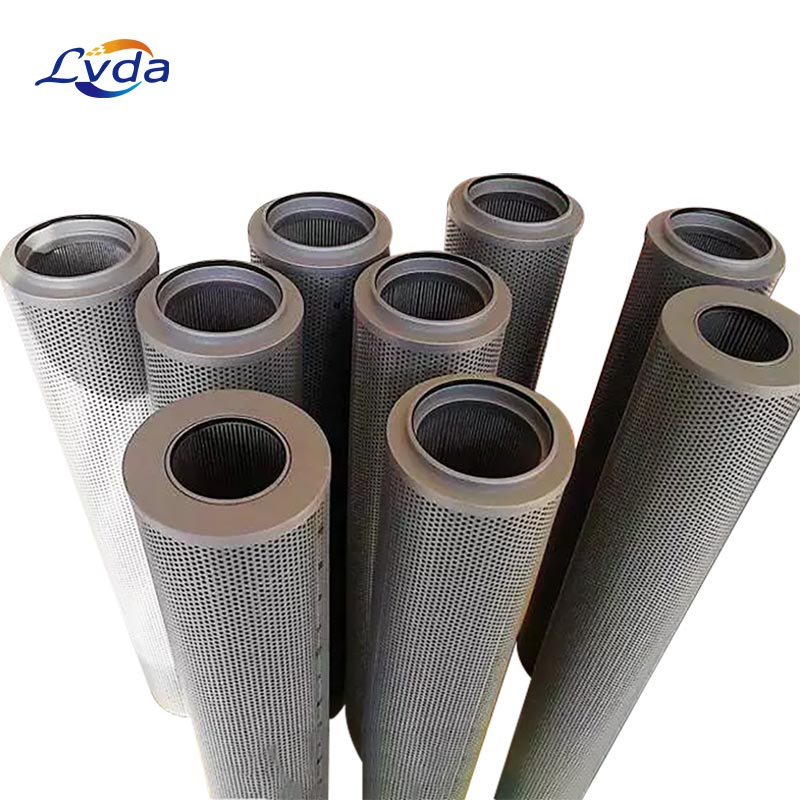

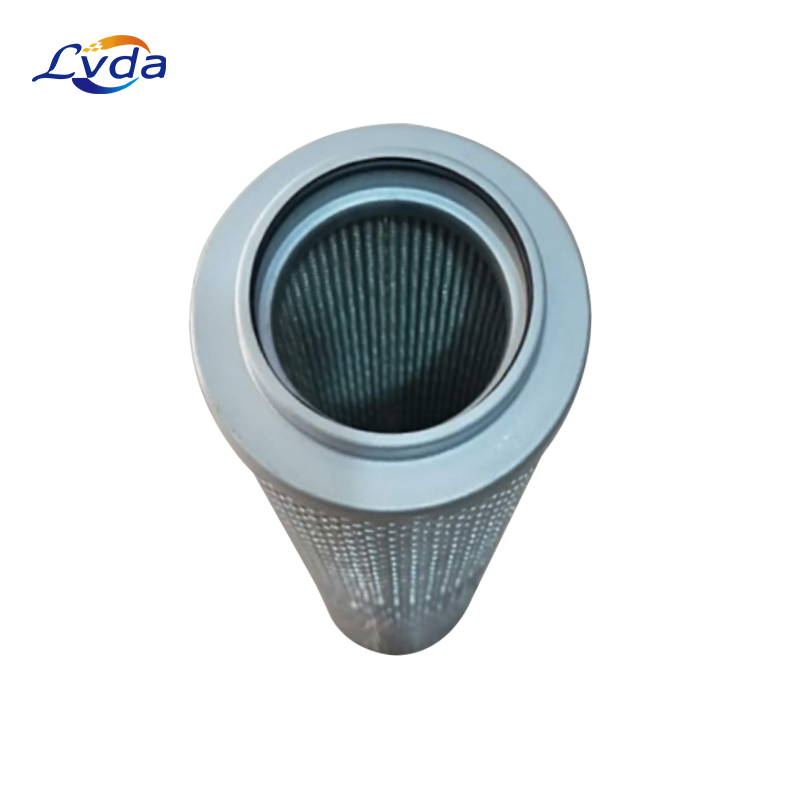

Substitute Filter Element For Fax-1000*10 Filter Element for Concrete Pump Truck 803150654

Product Details

  It adopts ultra-fine composite glass fiber material with high filtration precision, large dirt-holding capacity and low resistance as the filtering medium to filter out fine impurities in the oil to ensure the cleanliness of the hydraulic oil in the return tank and delay the service life of the hydraulic system; the additional high-strength steel wire mesh inside and outside is used as the support of the filter material to prevent the filter element from folding and folding backwards to ensure that the filter element works stably and effectively under complex working conditions such as high pressure.

    High-quality filter cartridge can improve the filtration precision and life of the product, effectively reduce the resistance of the filter material to the hydraulic oil and improve the through-flow capacity of the hydraulic oil.

Product features

1. It is divided into high pressure section, medium pressure section, oil return section and oil suction section.

2. It is divided into high, medium and low precision levels. 2-5um is high precision, 10-15um is medium precision, 15-25um is low precision.

3. To compress the overall dimension of the finished filter element and increase the filtering area, the filter layer is generally folded into a wavy shape, and the pleating height of the hydraulic filter element is generally less than 20mm

4. The pressure difference of the hydraulic filter element is generally 0.35-0.4MPa, but some special filter elements are required to withstand the high pressure difference, and the maximum requirement is 32MPa, or even 42MPa equivalent system pressure.

5. The maximum withstand temperature, some of which are required to reach 135 ℃

Product parameters

Product application

1.Automotive

2.Heavy-duty on-highway transportation

3.Commercial trucks and buses

4.Agriculture

5.Construction

6.Industrial

7.Marine

8.Mining

9.Oil & Gas

10.Power Generation
