Substitute Filter Element For FAX-800×20/FAX-800*20 LEEMIN Hydraulic Oil Filter
Substitute Filter Element For FAX-800×20/FAX-800*20 LEEMIN Hydraulic Oil Filter
Substitute Filter Element For FAX-800×20/FAX-800*20 LEEMIN Hydraulic Oil Filter

Substitute Filter Element For FAX-800×20/FAX-800*20 LEEMIN Hydraulic Oil Filter

Replacement for Leemin Filters

Model Number: FAX-800*20

Filter type: : HYDRAULIC FILTER ELEMENT

Absolute precision: : 20um;

Specifications: : 135mm×75mm×100mm×H587mm;

Working flow: : 800L/min;

Working pressure: : -21~210 bar

Get Quotation

Product Details

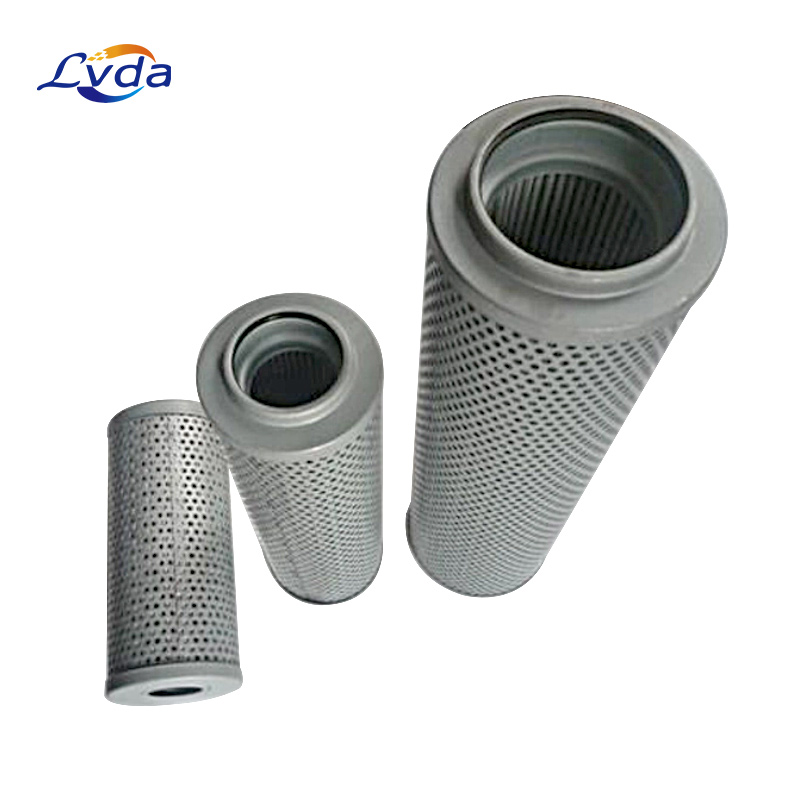

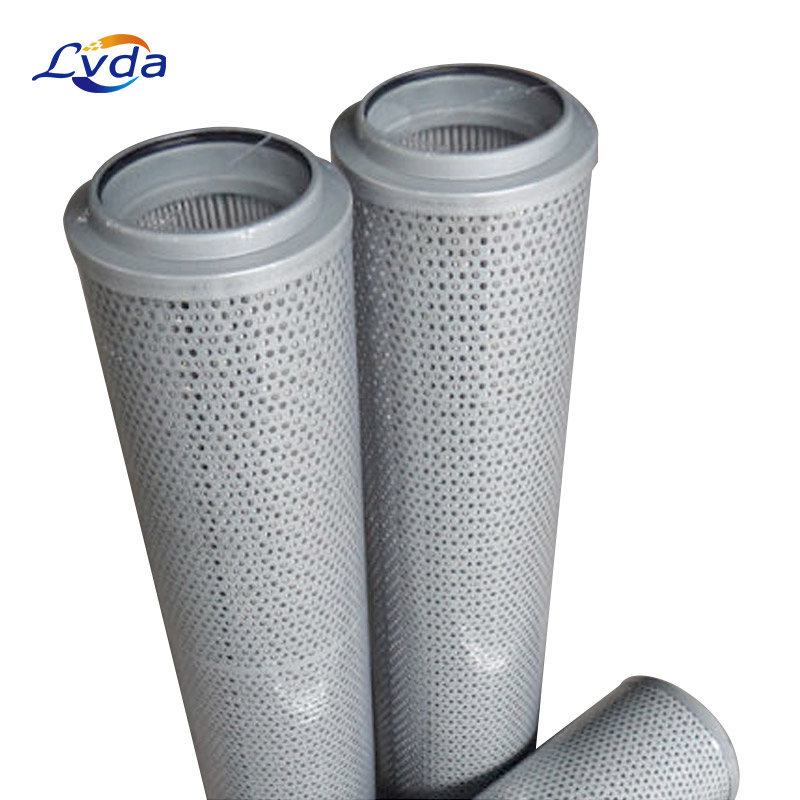

FAX-800 × 20 is a glass fiber filter element with no built-in framework, which can enter and exit from the inside. It is well known that glass fiber is a filter material that can achieve * * aperture filtration accuracy. Therefore, the oil return filter element FAX-800×20 produced by LVDA  is 100% made of superfine glass fiber filter material imported from HV Company. The initial differential pressure of this series of products is ≤ 0.0012Mpa and the service life is up to 4000 hours. LVDA has always been committed to the continuous upgrading of production processes and the implementation of European and American standards in the management system, so that our FAX-800 × 20 filter element maintains good price advantage and quality advantage. Here, our product manufacturing processes are all independently completed by LVDA, and the ISO9002123 system certification is implemented.

FAX-800×20/FAX-800*20 Liming filter element is installed in the filter. The oil in the hydraulic system enters the filter from the inlet, passes through the wavy surface of the filter element, and the impurities in the oil are adsorbed on the surface of the filter material. The clean liquid is immersed in the filter element, flows out from the outlet, and flows into the system. This circulation ensures the cleanliness of the hydraulic system.


Product features

1. It is divided into high pressure section, medium pressure section, oil return section and oil suction section.

2. It is divided into high, medium and low precision levels. 2-5um is high precision, 10-15um is medium precision, 15-25um is low precision.

3. To compress the overall dimension of the finished filter element and increase the filtering area, the filter layer is generally folded into a wavy shape, and the pleating height of the hydraulic filter element is generally less than 20mm

4. The pressure difference of the hydraulic filter element is generally 0.35-0.4MPa, but some special filter elements are required to withstand the high pressure difference, and the maximum requirement is 32MPa, or even 42MPa equivalent system pressure.

5. The maximum withstand temperature, some of which are required to reach 135 ℃

Product parameters

Model:FAX-800*20
Place of Origin:Henan, China
Brand Name:LVDA
Life span:6000- 8000h
Certificate:ISO9001
Quality:100% Tested
Working pressure:-21~210 bar
Filter type:HYDRAULIC FILTERELEMENT
Absolute precision:20um;
Specifications:135mm×75mm×100mm×H587mm;
Working flow:800L/min;

Product application

1.Automotive

2.Heavy-duty on-highway transportation

3.Commercial trucks and buses

4.Agriculture

5.Construction

6.Industrial

7.Marine

8.Mining

9.Oil & Gas

10.Power Generation
