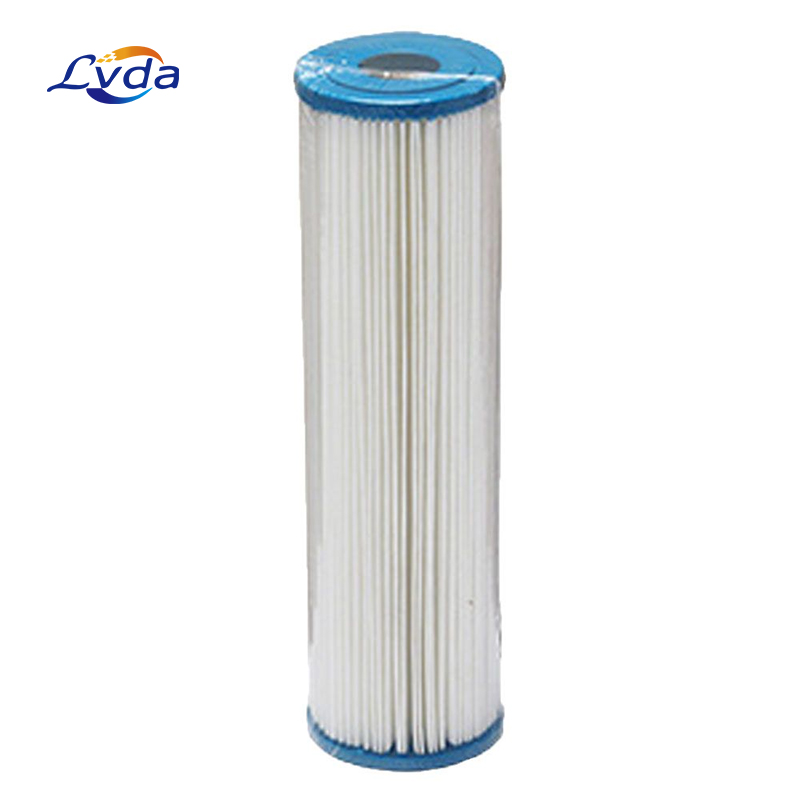

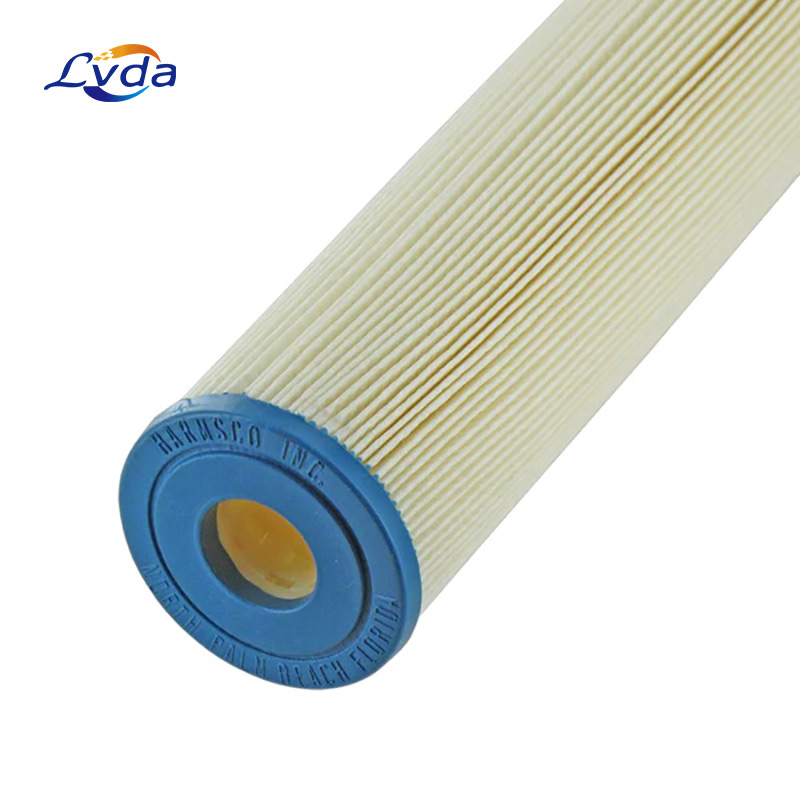

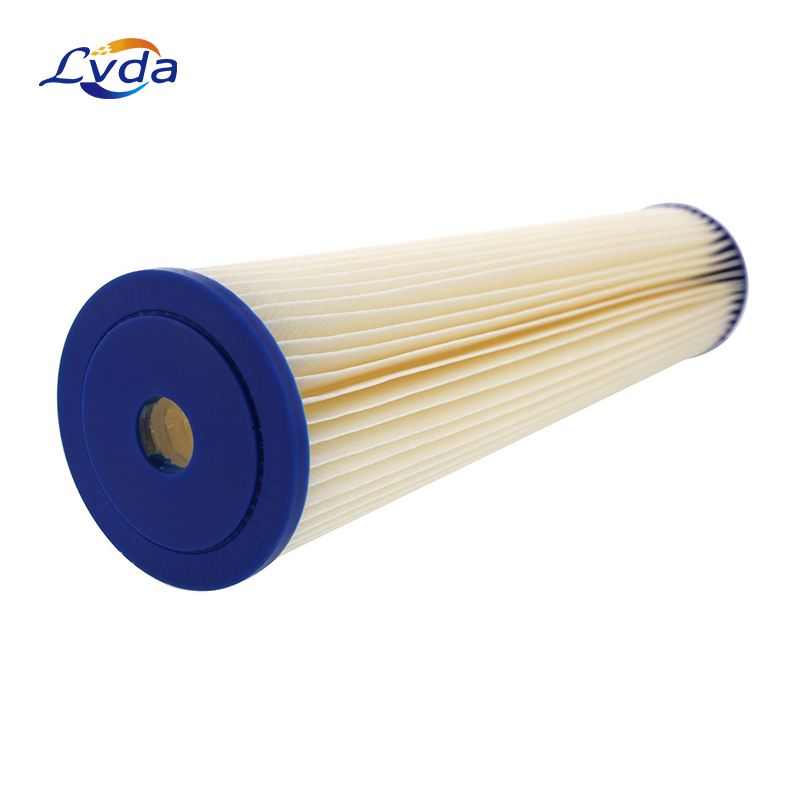

High Flow Filter Cartridge

Model Number: 801-20W

Micron Rating (Nominal) : 20

Max Temperature : 140 °F

Length in inch : 10

Outside Diameter (inches) : 2.75

Inside Diameter (inches) : 1.0625

Get Quotation

Product Details

The Harmsco 801 Series are highly efficient filter cartridges made of pleated Polyester-Plus filter media for low pressure drop, high flow capability, increased contaminant removal, long filter runs, reusability, and the lowest cost per gallon filtered.

The Harmsco 801-20W water filter is a 20 micron, highly efficient filter cartridge made of pleated Polyester-PlUSFilter media for low pressure drop, high flow cap. The Harmsco 801-20W water filter's pleated design offers up to 50% more surface area than competitive filters resulting in superior performance and increased contaminant removal, and longer filtration runs for fewer changeouts and less maintenance. Low pressure drop. Thermally bonded for longer usable life. FDA approved materials--NSF 61 certified and has an Engineered media for superior performance.

Product features

1.Pleated design with up to 50% more surface area than competitive filters resulting in superior performance and increased contaminant removal

2.Longer filtration runs for fewer change-outs and less maintenance

3.Low pressure drop

4.Thermally bonded for longer usable life

5.Recommended Flow Rate: 6 gpm

6.FDA approved materials - NSF 61 certified

7.Engineered media for superior performance

Product parameters

Model

801-20W

Place  of Origin

Henan,  China

Brand  Name

LVDA

Life  span

6000-  8000h

Certificate

ISO9001:2008

Quality

100%  Tested

Type

cellulose-free

Pore  Size

20  µ

Max  Temperature

60  °C

Max  Temperature

140  °F

Flow  rate gpm/ft2

4.25  gpm/ft2

Length  in inch

10

Length  in cm

25.4

Advertised  Size (in)

10  x 2-1/2

Actual  Size (in)

9  3/4 inches (length) x 2 3/4 inches (outside diameter) x 1 1/16 inches (inner  diameter)

Actual  Size (cm)

24.765  x 6.985 x 2.69875



Inside  Diameter (inches)

1.0625

Outside  Diameter (inches)

2.75

Media

Polyester-Plus

Primary  Filter Media

Pleated  Fabric

Media  Square Feet

6

Micron  Rating (Nominal)

20

Flow  Rate (gpm)

4

Flow  Rate (lpm)

15.142

Operating  pH Range

3.0  - 11.0


Product application

1.Reverse Osmosis Pre- filtration

2.Drinking water

3.Desalination Pre-filtration

4.Cooling Tower Filtration

5.Chill Water Loop Filtration

6.Food & Beverage Filtration

7.Marine / Aquatic Filtration

8.Coolants

9.Bottled water

10.Organic solvents
