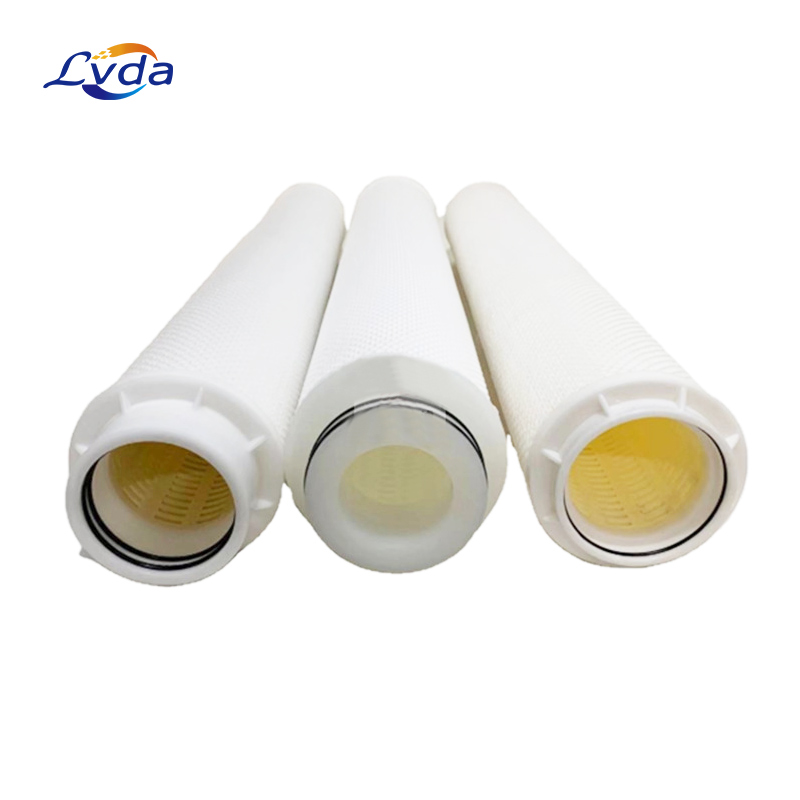

Replacement for Pall PFTM4060UHFJ Marksman™ PFT High Flow Series Filter Elements

Product Details

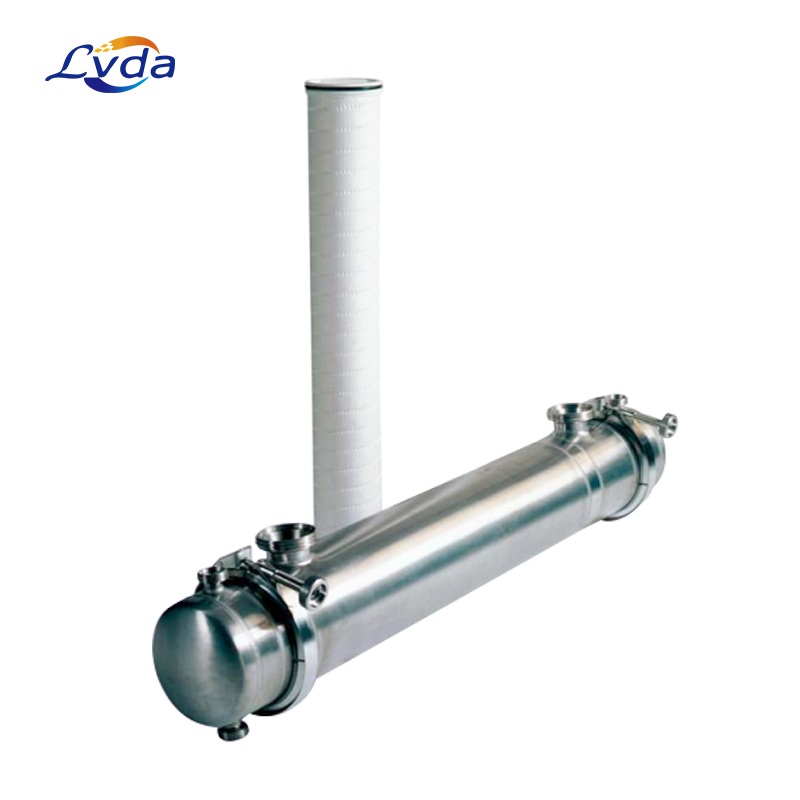

To install a filter element, remove the element hold down plate by lifting it off the locating pins. Lubricate the O-ring on the open-end of the filter with a compatible fluid, and slide the closed end of the filter into the perforated cage, which is welded to the tubesheet. Seat the elements in place by pressing down on the open-end of the filter until the element is snug in the tubesheet. This provides a seal between the filter and housing via the filter O-ring. The open-end cap must be below the tubesheet surface. After installing all the filter cartridges, reinstall and secure the element hold down plate by guiding it over the locating pins on the tubesheet. The purpose of the hold down plate is to prevent the elements from becoming dislodged in the event of reverse flow. A filter element tool is provided with each housing to aid with the installation and removal of the filter cartridges. This tool eliminates the need for an operator to reach within the filter vessel to either remove or install the filters.

Product features

1.Large cartridge geometry

2.High flow capacity1

3.Poly-Fine II proprietary media for highly consistent

4.filtration

5.Inside to out flow traps contaminant inside the element

6.Fits into standard High Flow filter housings

Product parameters

Product application

1．Chemical and petrochemical industry

2．Pharmaceutical industry

3．Breathing air

4．Prefiltration of sterile filters

5．Filling machines

6．Food & beverage industry

7．Packing machines

8．Process industry
